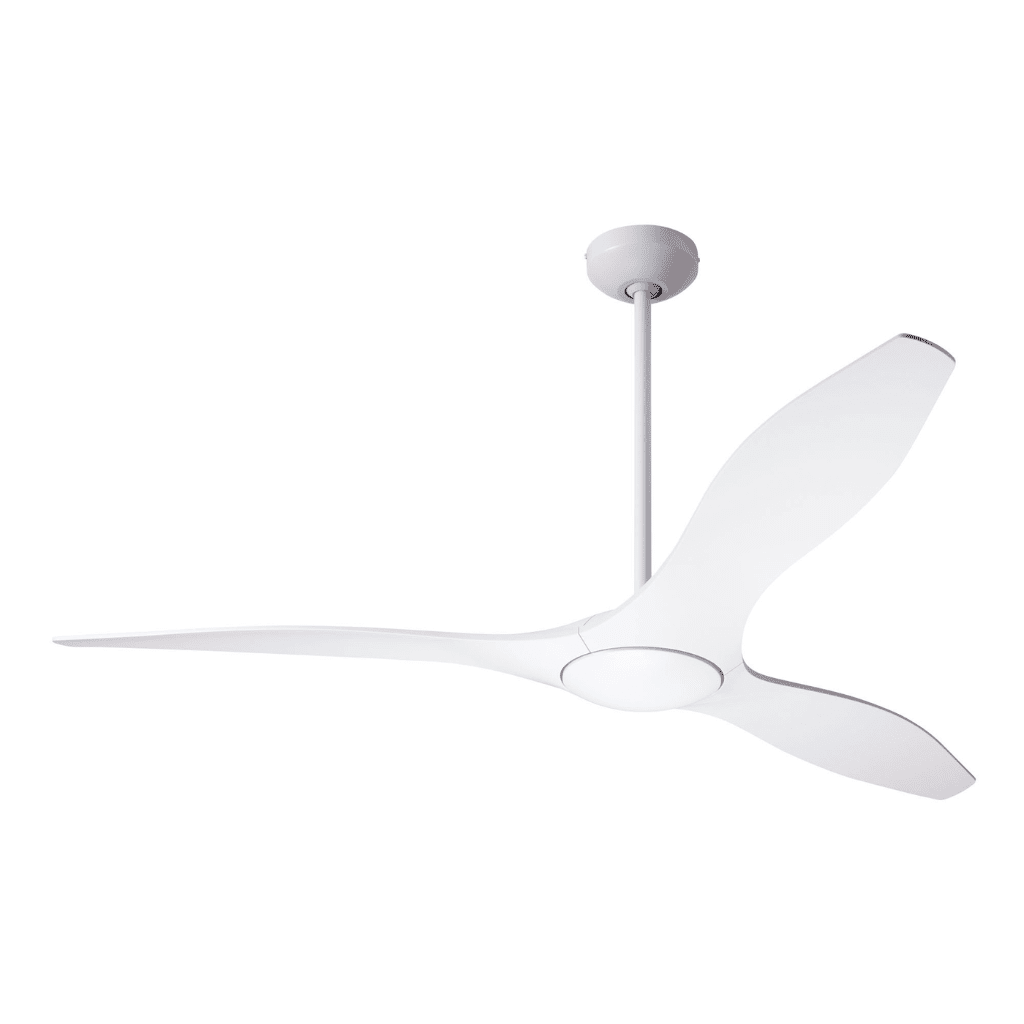

IC/Brisa DC | 56″ Ceiling Fans Modern Fan Co Matte White No Light Wall Control

IC/Brisa DC | 56″

Name: IC/Brisa DC | 56″
Brand: Modern Fan Co
SKU: BRI-MW-56-NL-WC
Price: 605.0 USD
Availability: InStock

View All Modern Fan Co

$605.00

Final Price:

Fan Finish

Light Option

Choose Control

Qty

IC/Brisa DC | 56″

* Ships in 5-7 days *

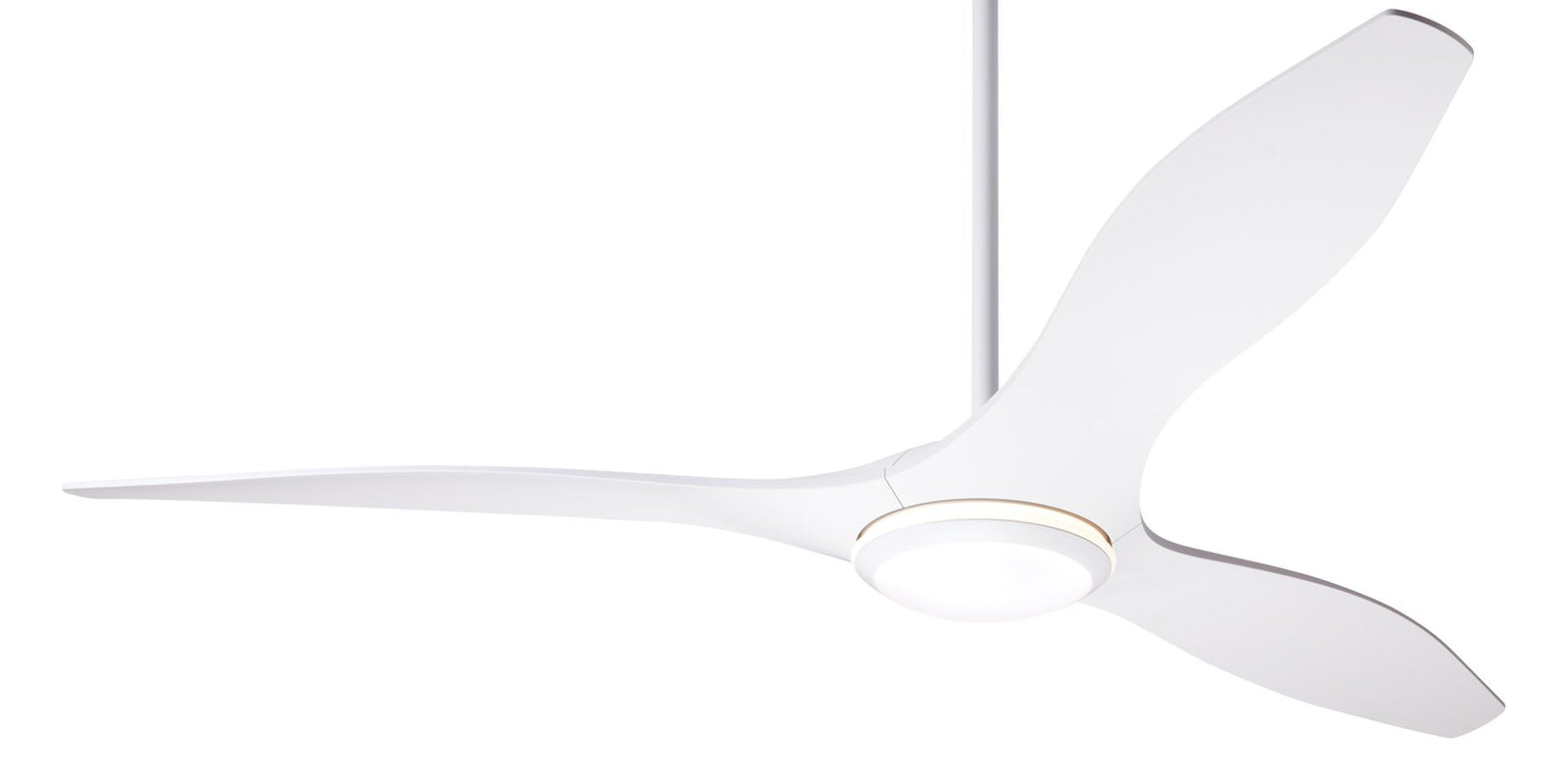

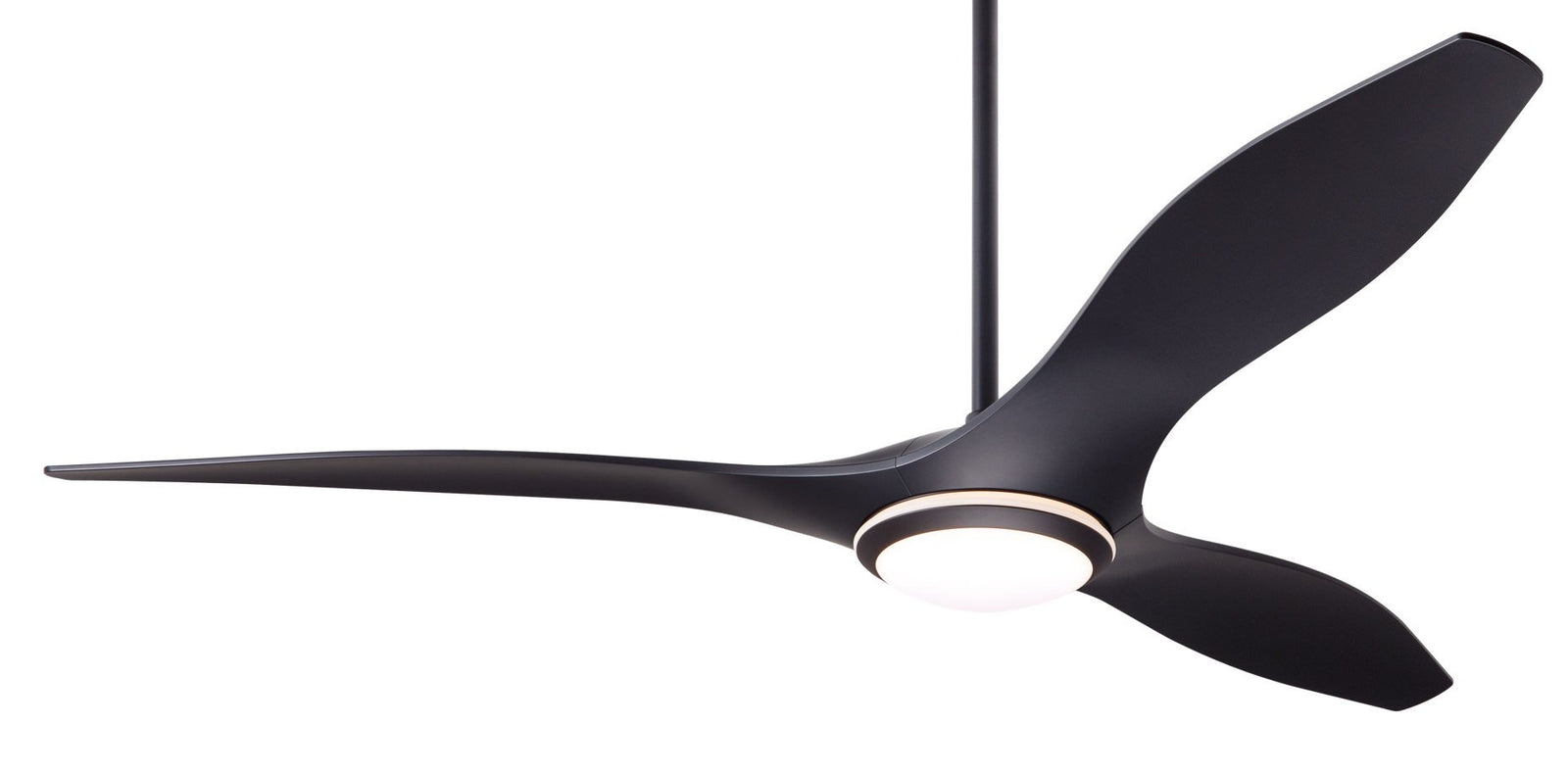

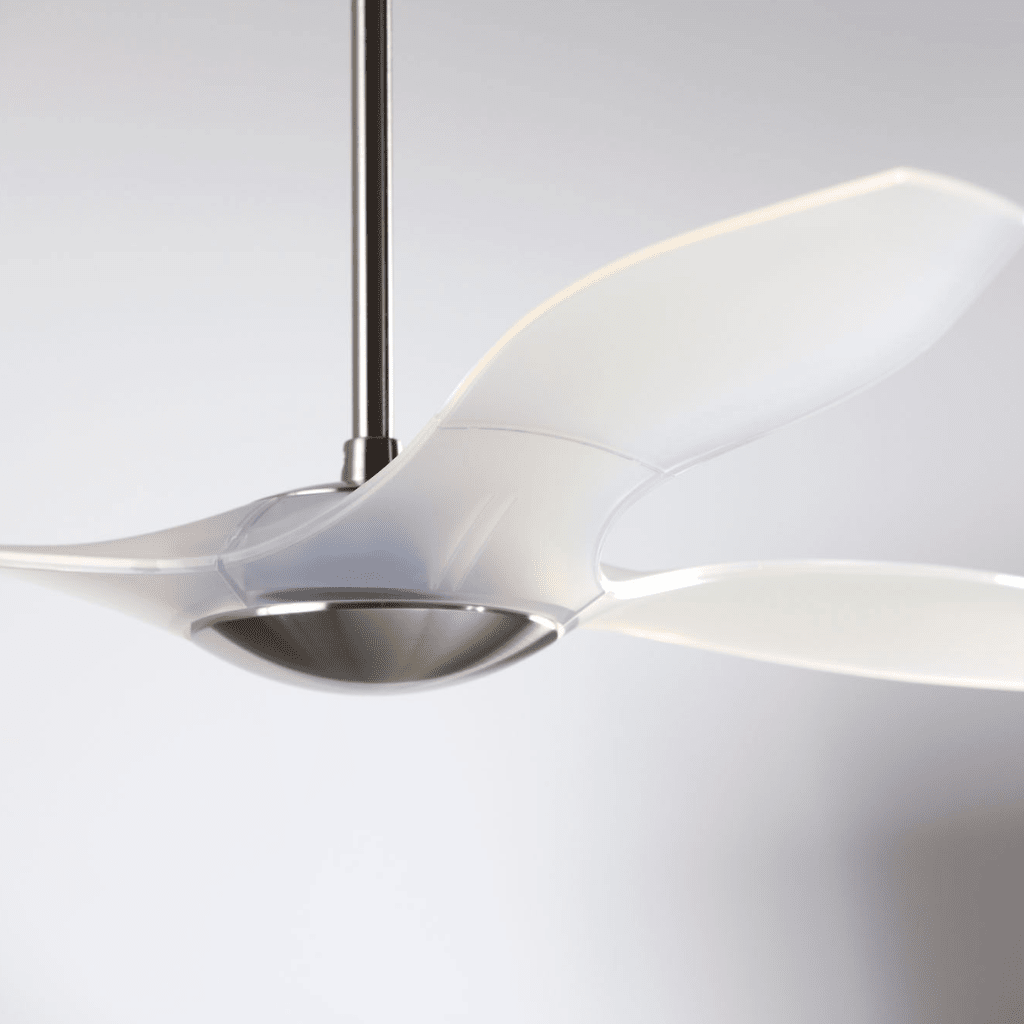

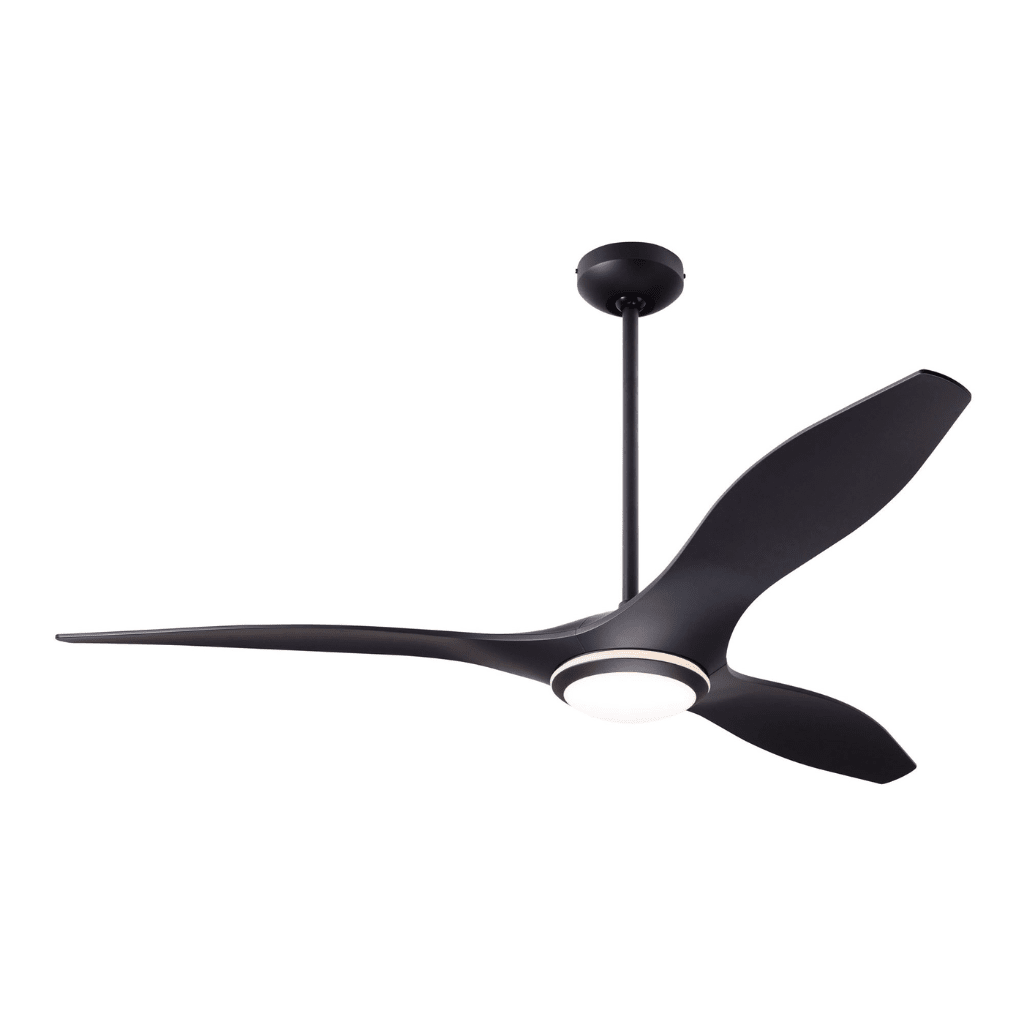

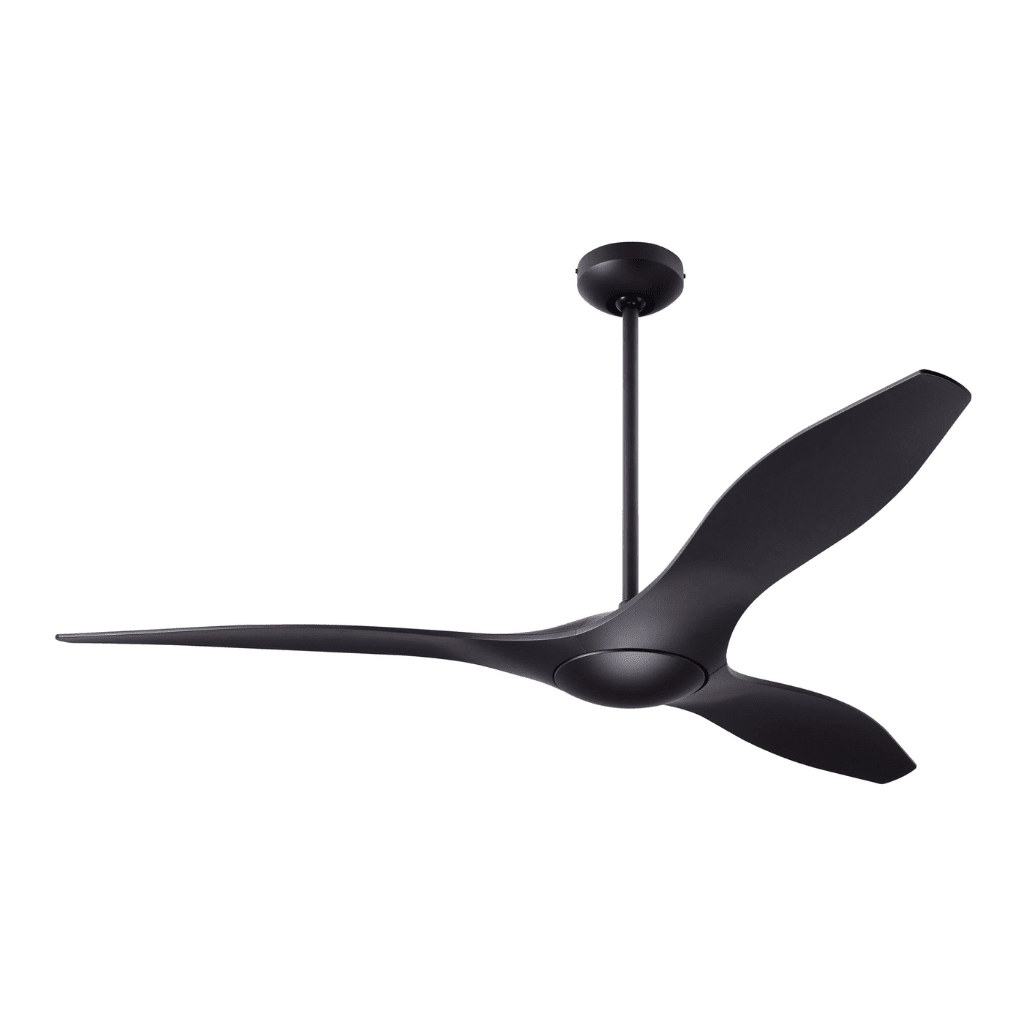

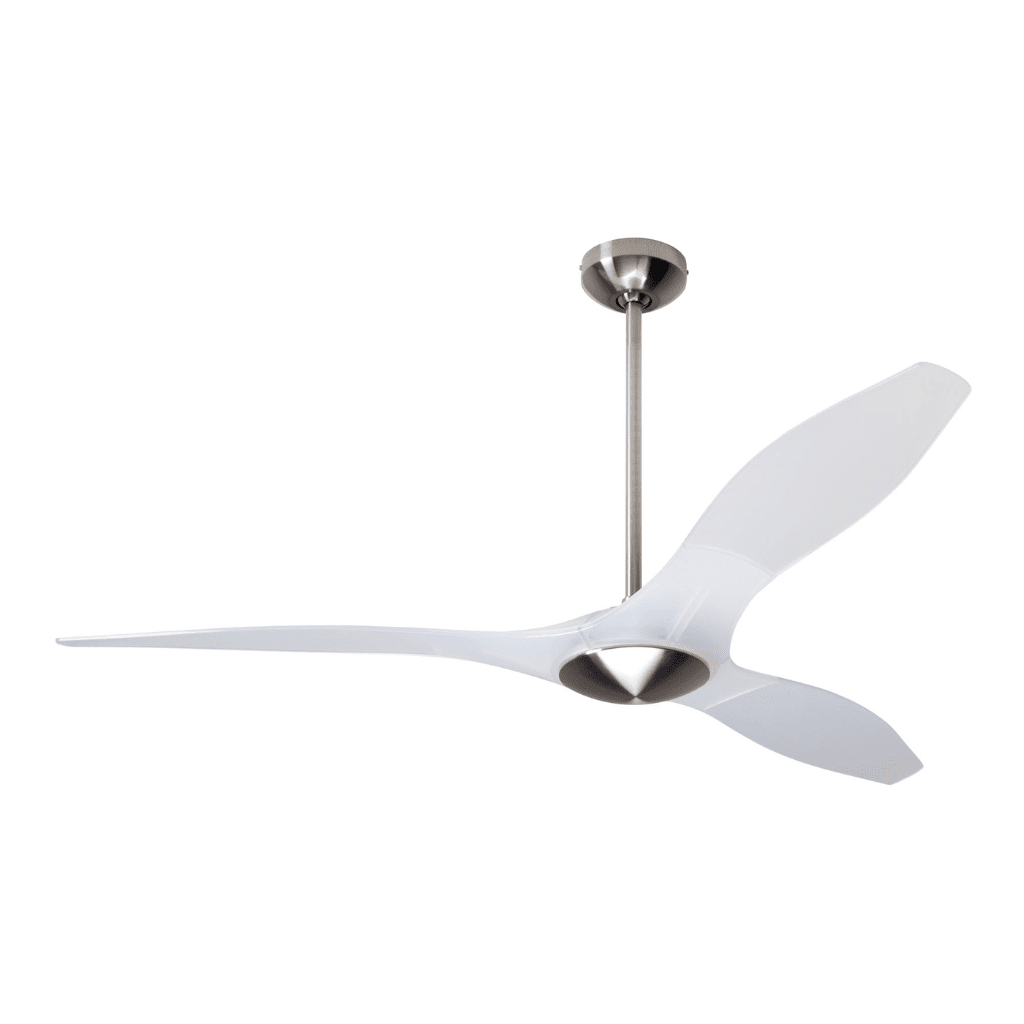

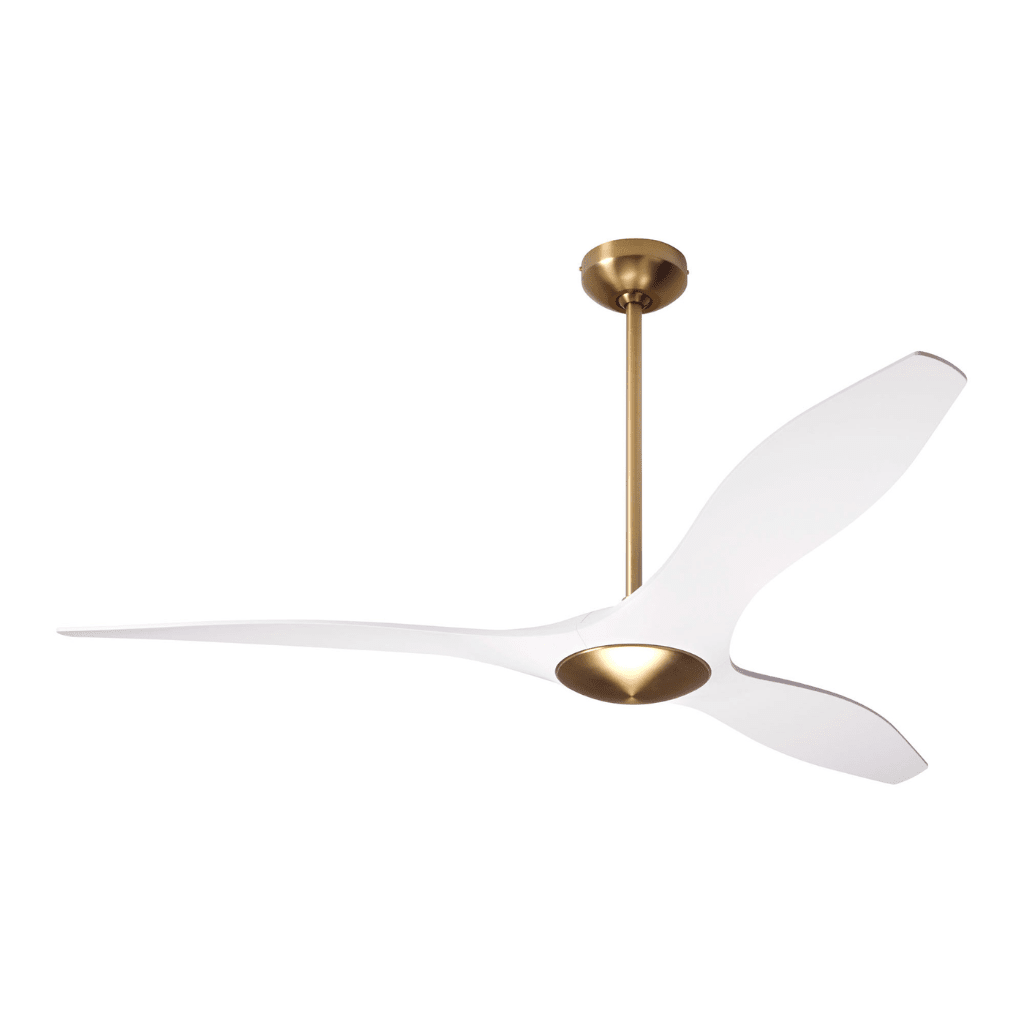

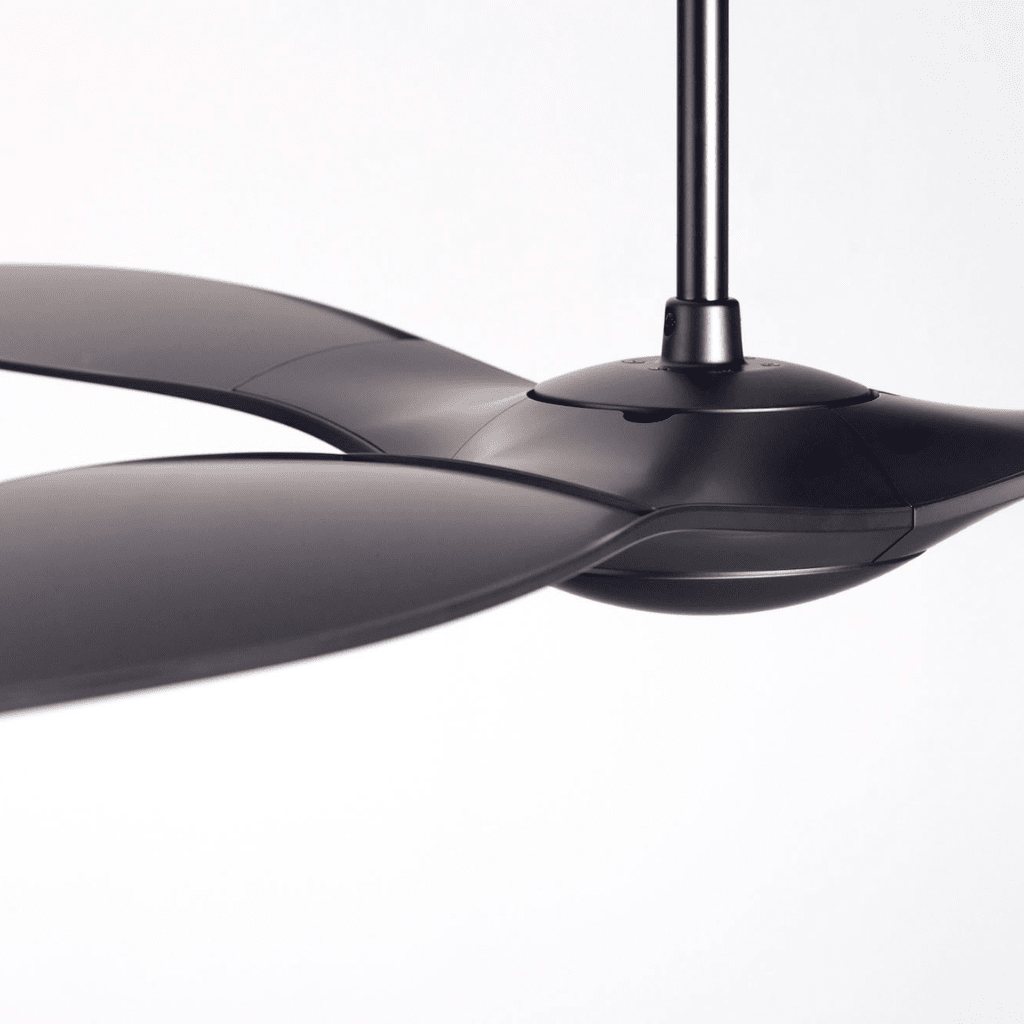

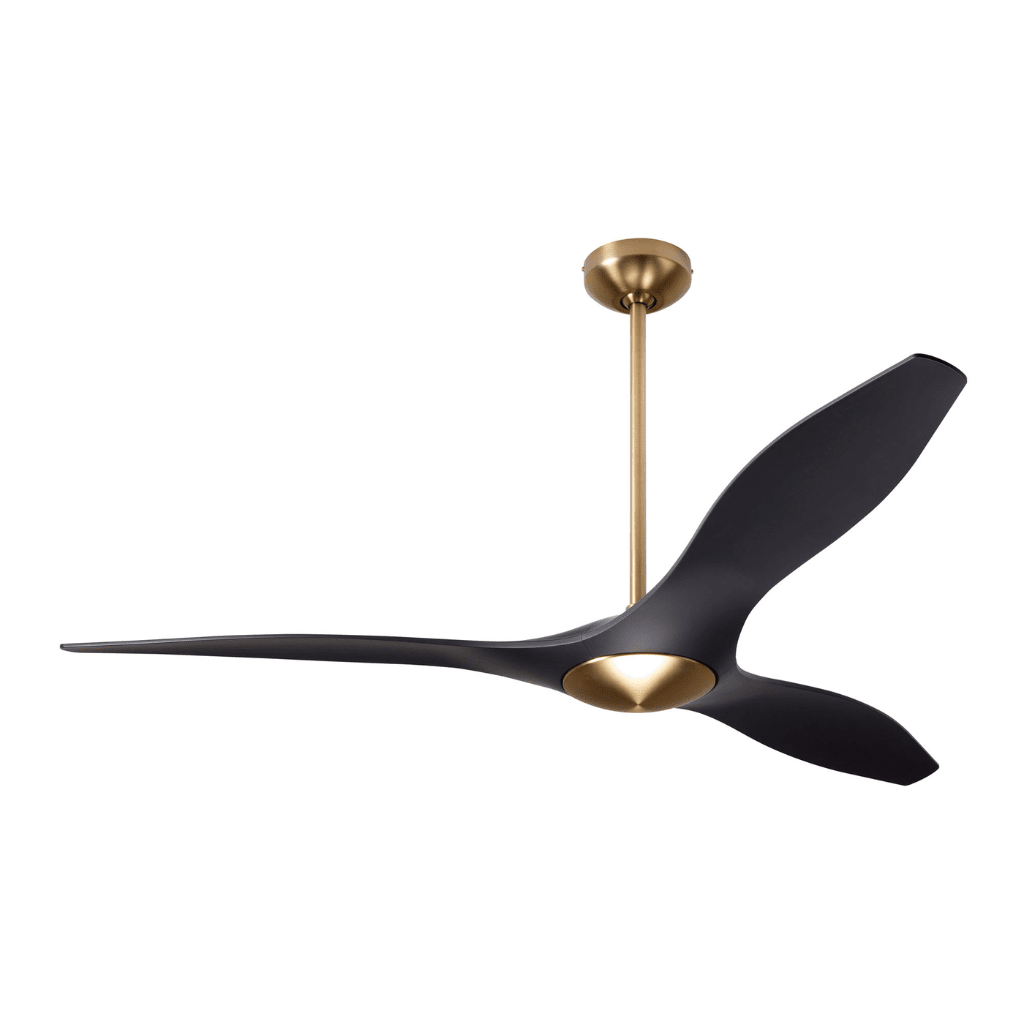

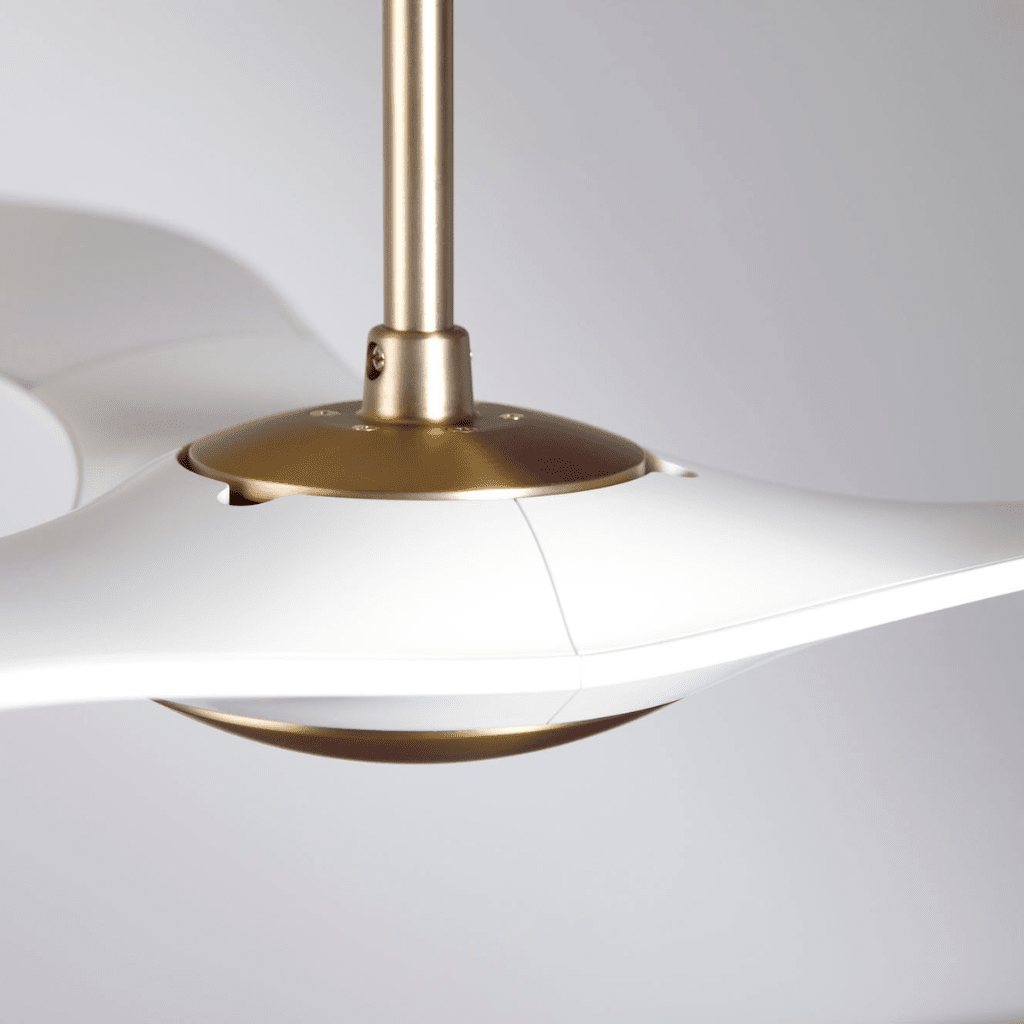

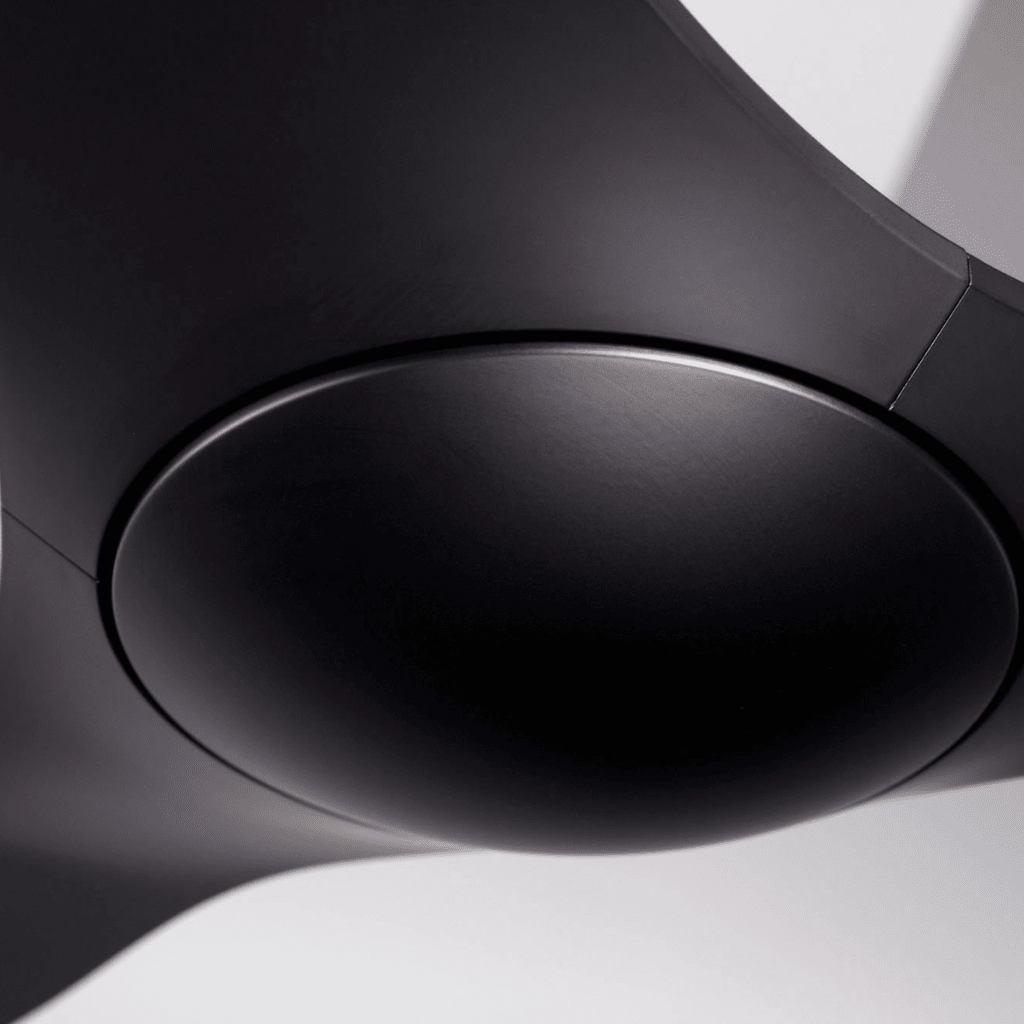

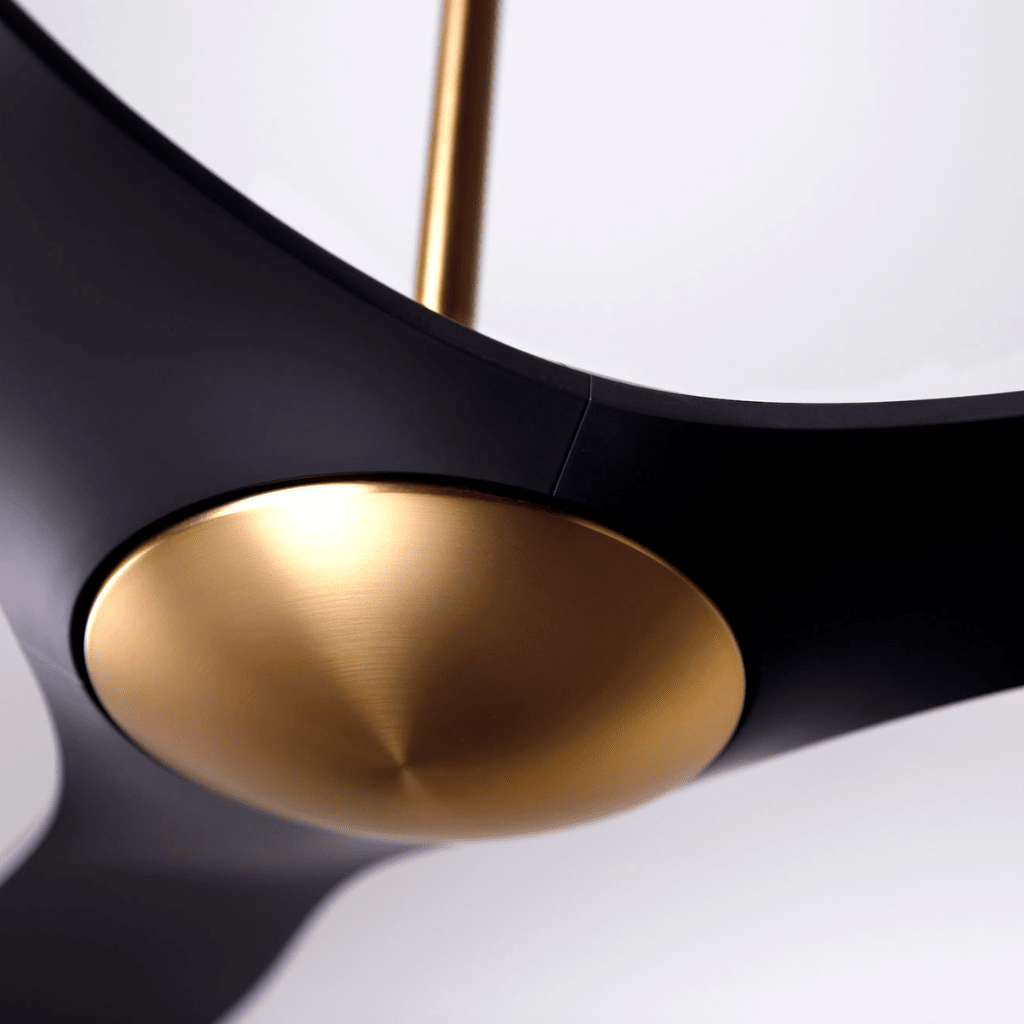

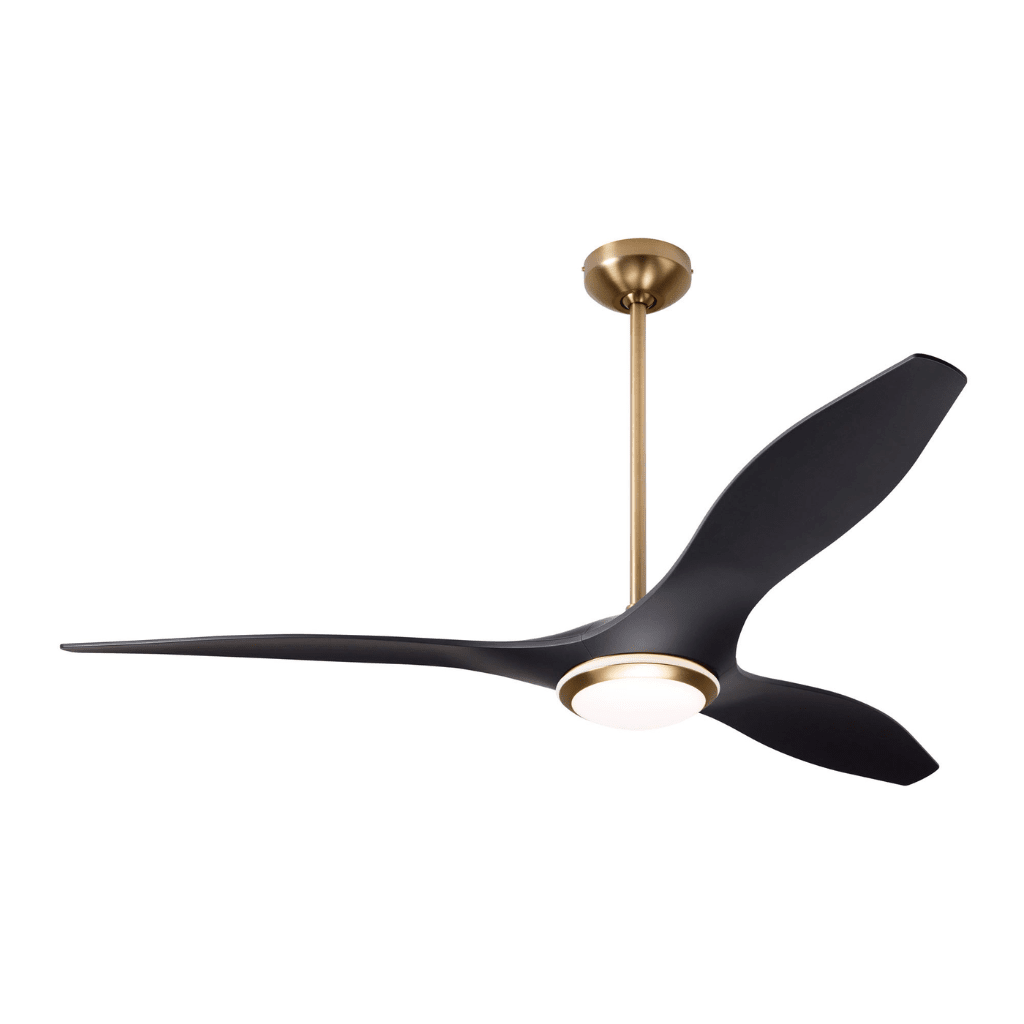

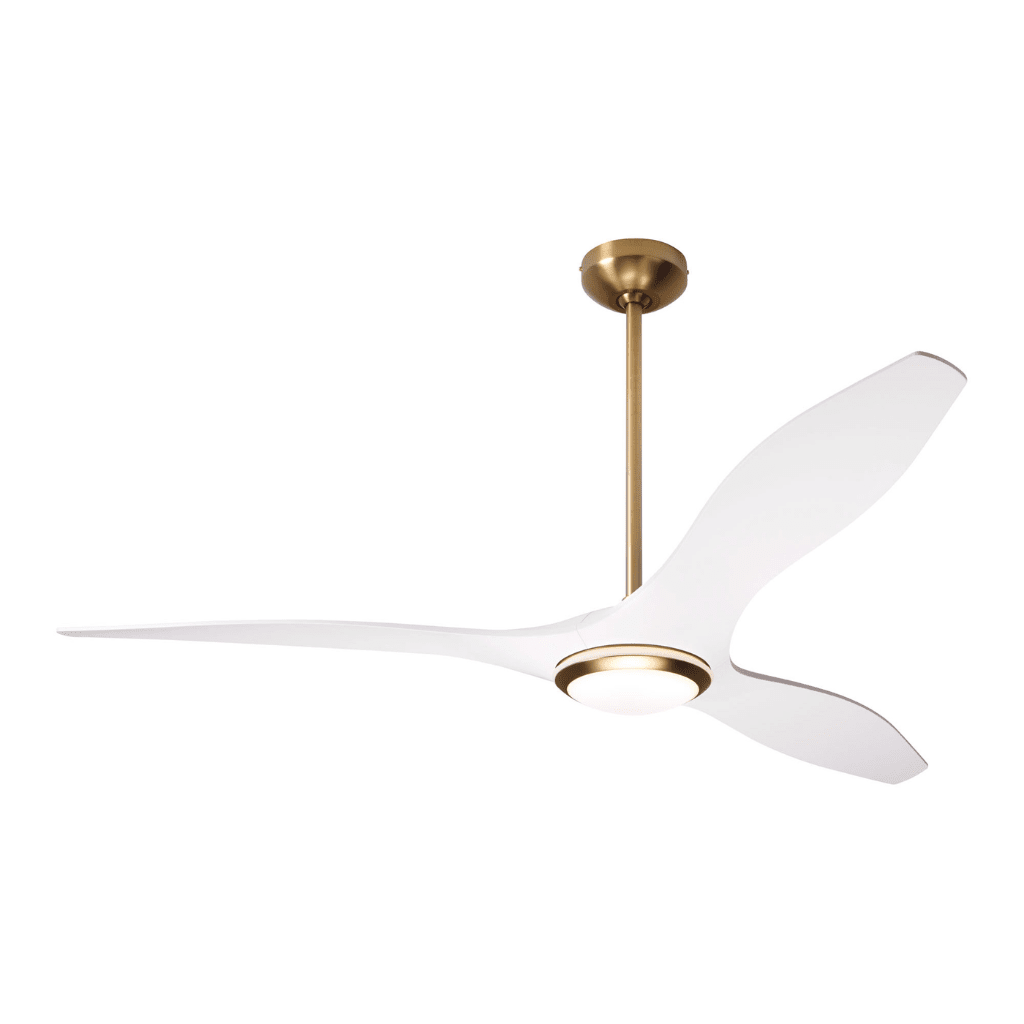

The IC/Brisa DC Ceiling Fan from Modern Fan Company adds a pleasing sculptural presence to inside spaces. An articulate modern design descending from a long downrod places a small, though strong DC motor in a central disc hub, accompanied by a damp-rated LED lamp set into the housing’s base. Three injection-molded ABS blades extend outward from the central hub, accompanied by the gentle glow of the lamping and embellishing the fan’s otherwise simple design with their inspired curvature.

Features

6-speed, reversible DC motor
Die cast aluminum and injection-molded ABS construction

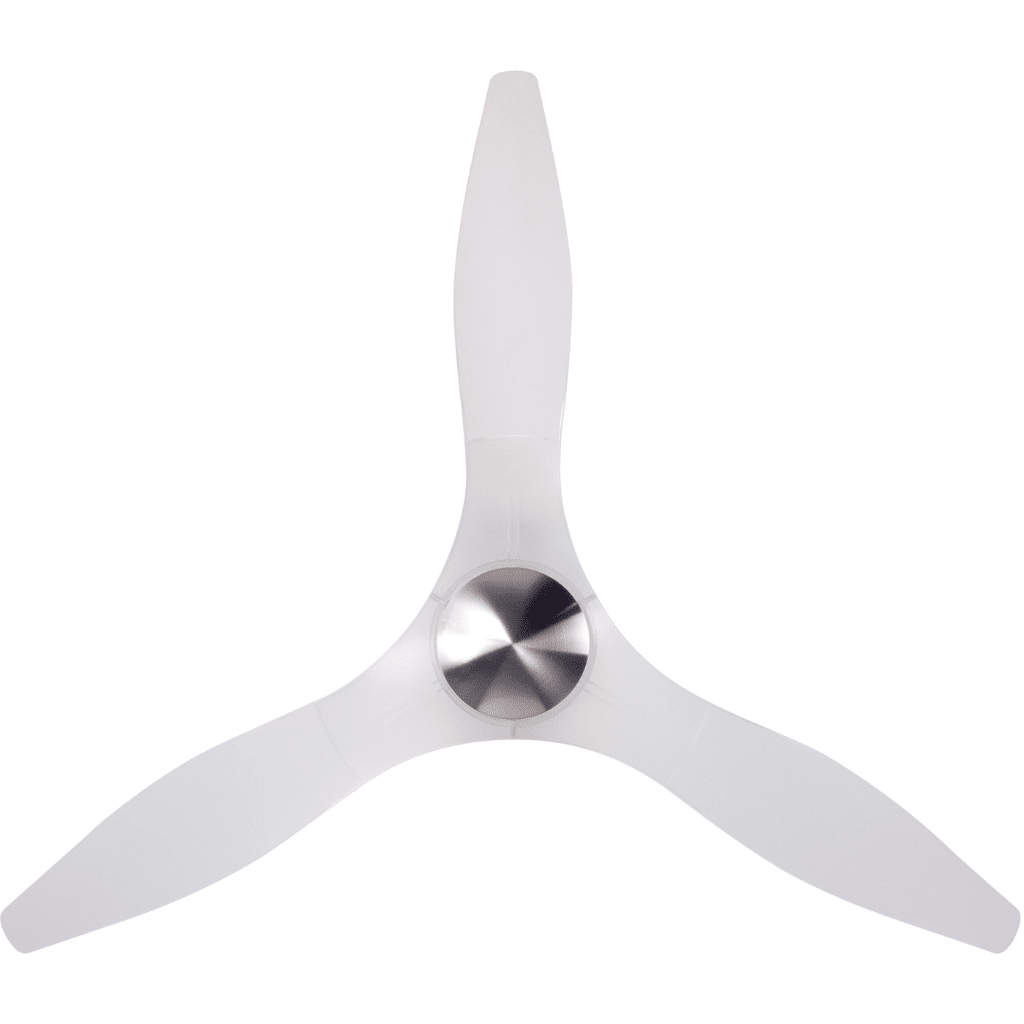

56” span, injection-molded ABS blades (matte white, matte black or translucent)
Includes 6” and 18” down rods; longer options also available

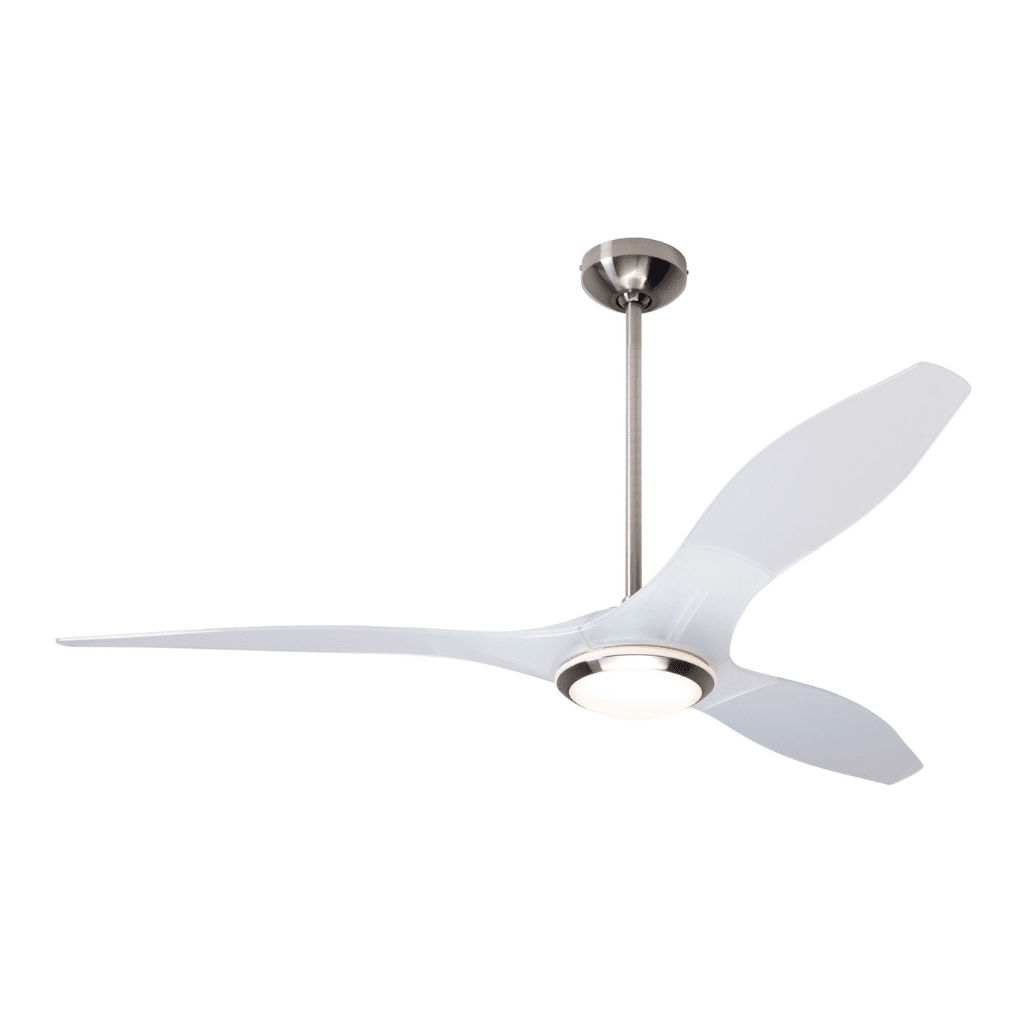

Optional LED light: 17W, 90 CRI, 3000K, 1530 lumens (dimmable) behind an opal glass diffuser; CA Title 24 (JA8) compliant
Slope compatible up to 20°; adapter available for slopes up to 45°
Designed by Guto Indio da Costa
ETL listed for dry and damp locations
Weight: 12.0 lbs (5.44 kgs)

High Speed Performance Data:
Based on DOE standardized test method (installed with 6″ down rod).

RPM: 185
CFM (Cubic Feet per Minute): 5,584
Watts (fan only): 29.89
CFM/Watt: 187

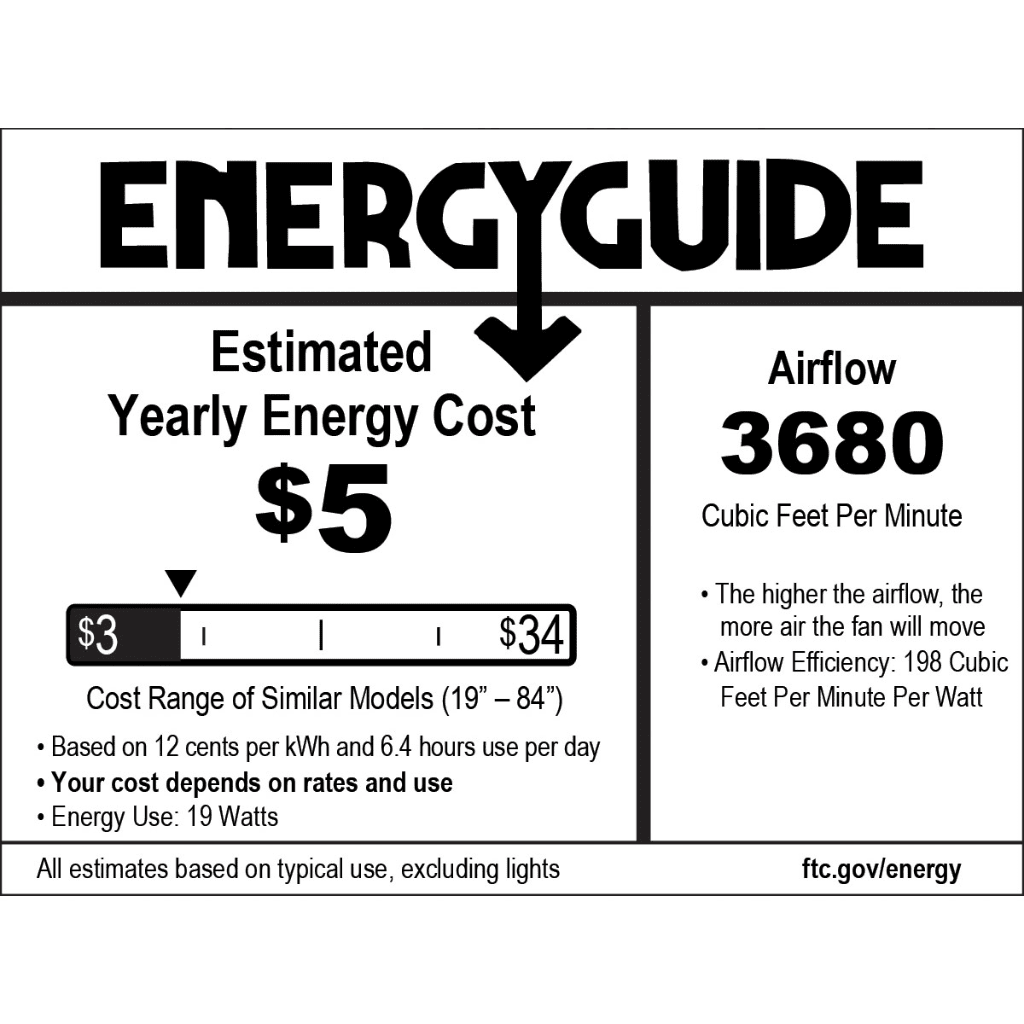

Energy Guide Data:
Representing weighted averages of high speed and low speed performance based on DOE/FTC standardized reporting criteria. Assumes typical use (excluding light).

Average Energy Use: 19 Watts
Average Airflow: 3,680 CFM
Yearly Energy Cost: $5.00
Average Efficiency: 198 CFM/Watt

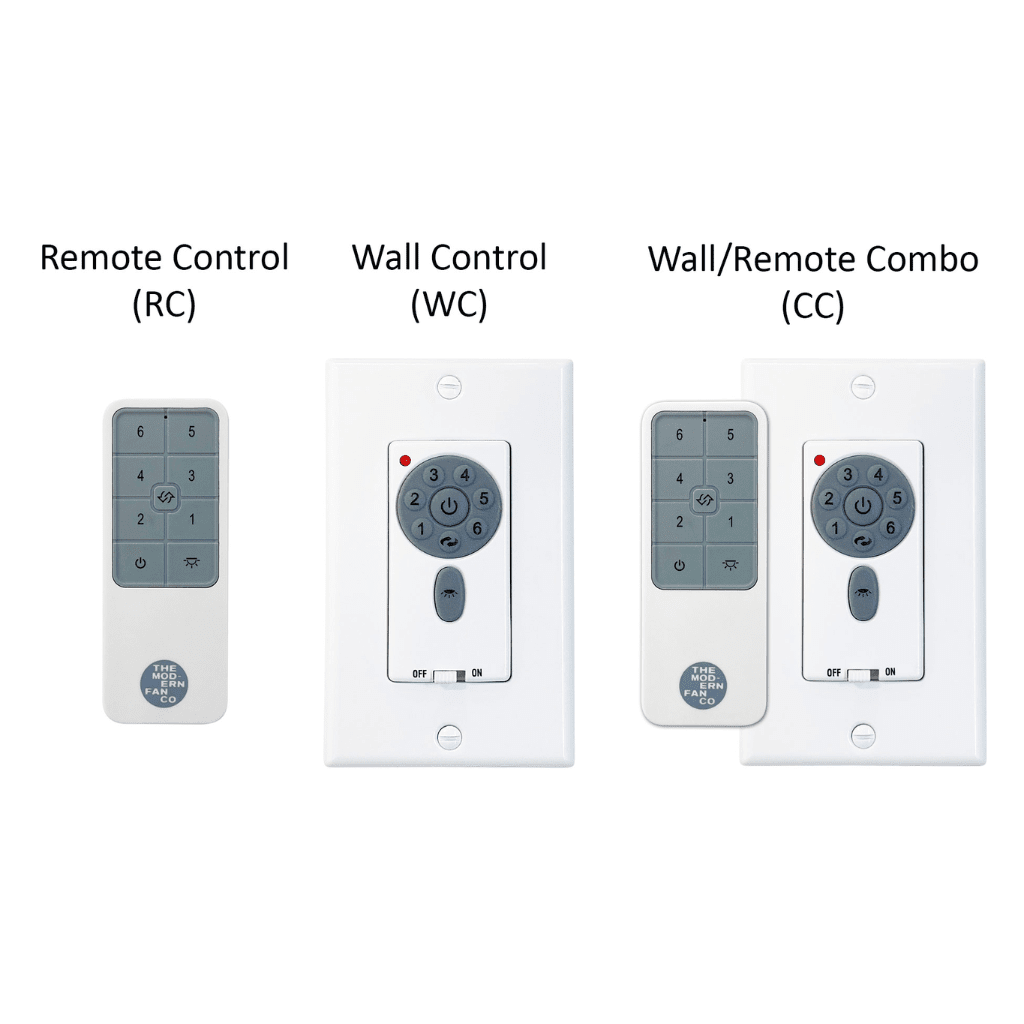

Control Options for DC Motor Fans

Wall Control (WC)
For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), battery and RF canopy receiver.

Remote Control (RC)
For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes handset, wall mount holder, battery and and RF canopy receiver. For use with on/off toggle switch providing power supply to fan.

Wall/Remote Combo (CC)
A combination control set for radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), handset, batteries and RF canopy receiver.

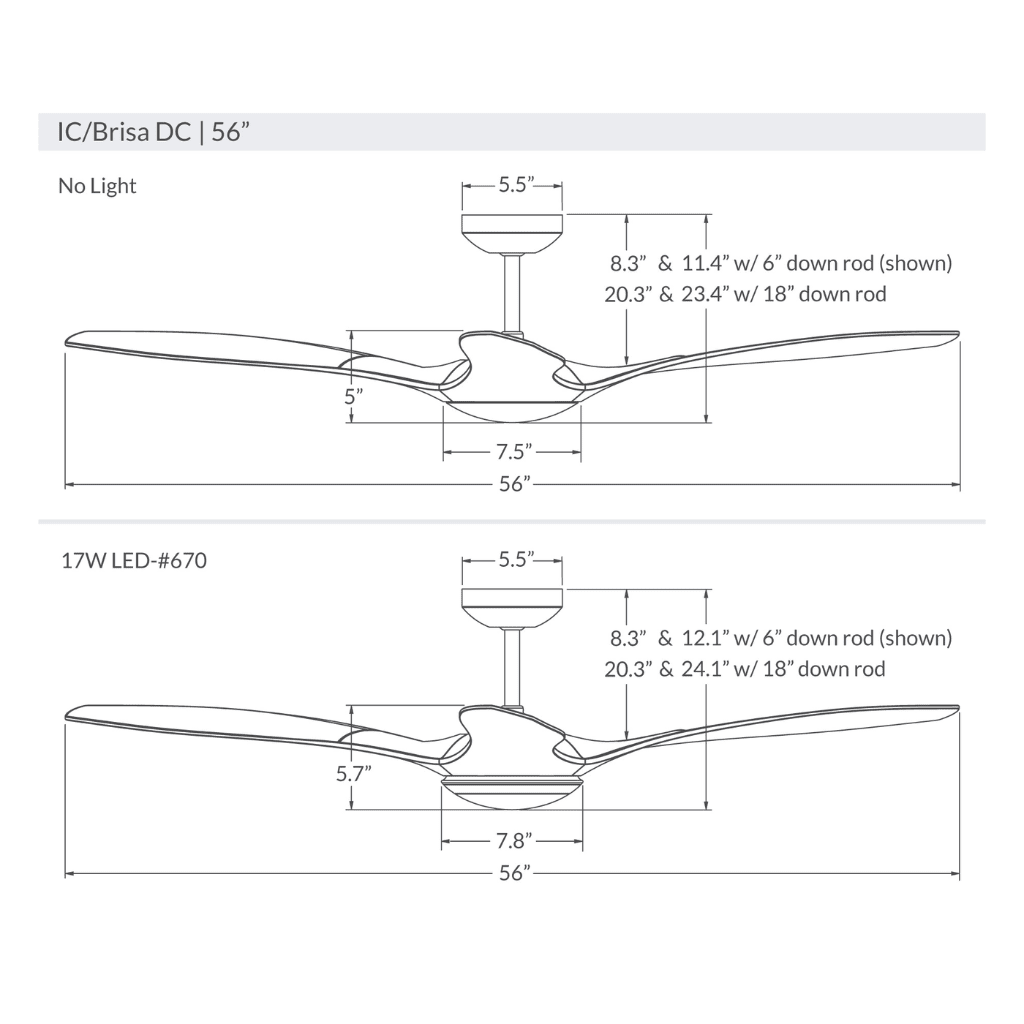

Dimensions:

dimensional drawings

* Ships in 5-7 days *

Features

6-speed, reversible DC motor
Die cast aluminum and injection-molded ABS construction
56” span, injection-molded ABS blades (matte white, matte black or translucent)
Includes 6” and 18” down rods; longer options also available
Optional LED light: 17W, 90 CRI, 3000K, 1530 lumens (dimmable) behind an opal glass diffuser; CA Title 24 (JA8) compliant
Slope compatible up to 20°; adapter available for slopes up to 45°
Designed by Guto Indio da Costa
ETL listed for dry and damp locations
Weight: 12.0 lbs (5.44 kgs)

High Speed Performance Data:
Based on DOE standardized test method (installed with 6″ down rod).

RPM: 185
CFM (Cubic Feet per Minute): 5,584
Watts (fan only): 29.89
CFM/Watt: 187

Energy Guide Data:
Representing weighted averages of high speed and low speed performance based on DOE/FTC standardized reporting criteria. Assumes typical use (excluding light).

Average Energy Use: 19 Watts
Average Airflow: 3,680 CFM
Yearly Energy Cost: $5.00
Average Efficiency: 198 CFM/Watt

Control Options for DC Motor Fans

Dimensions:

dimensional drawings
