Arbor DC Ceiling Fan

***** USUALLY SHIPS IN 5-7 DAYS *****

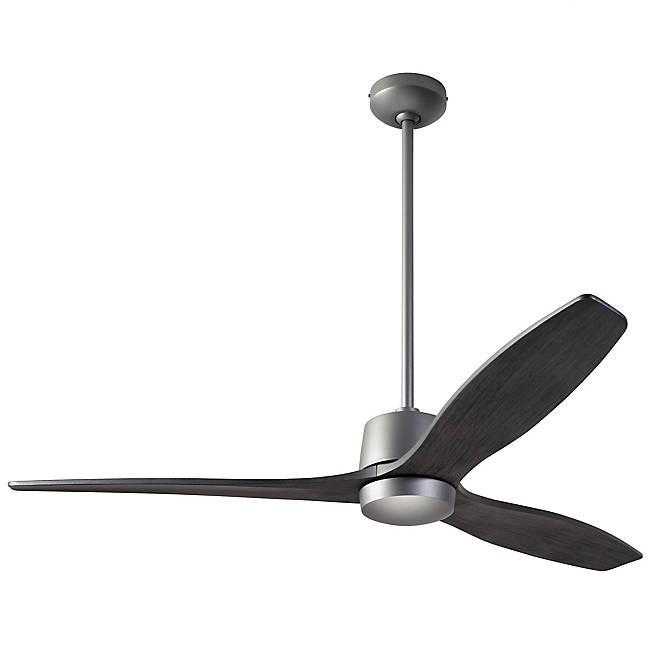

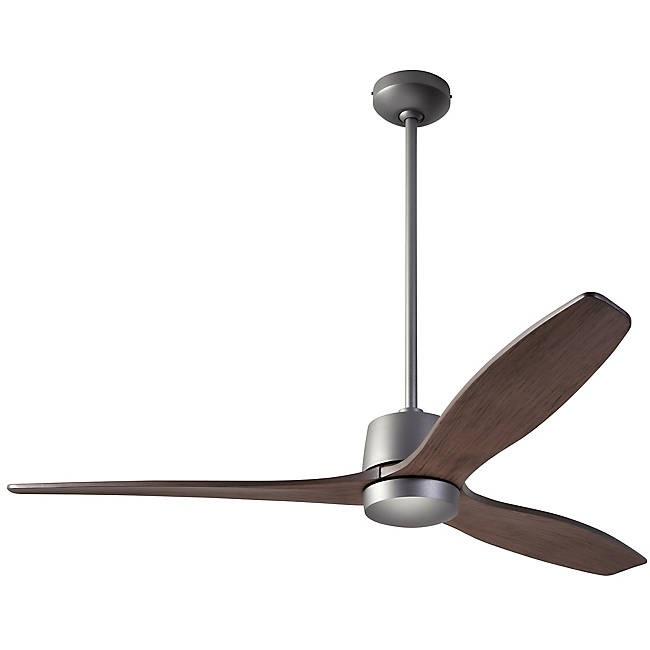

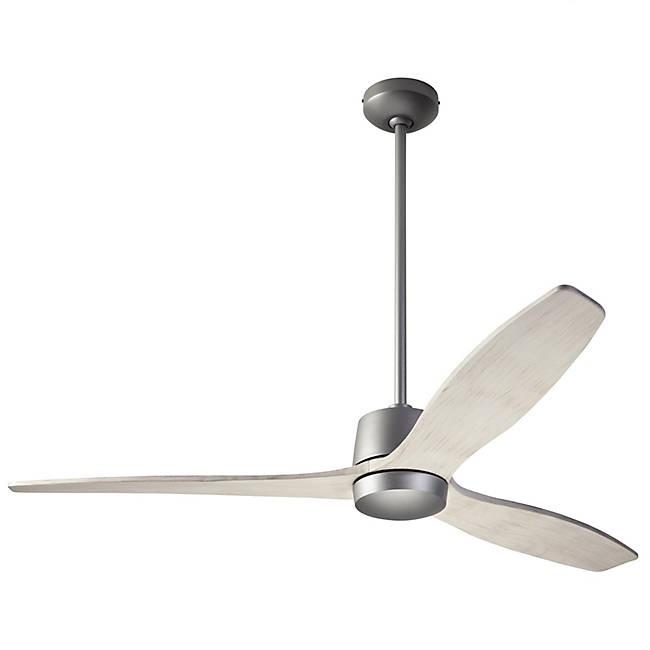

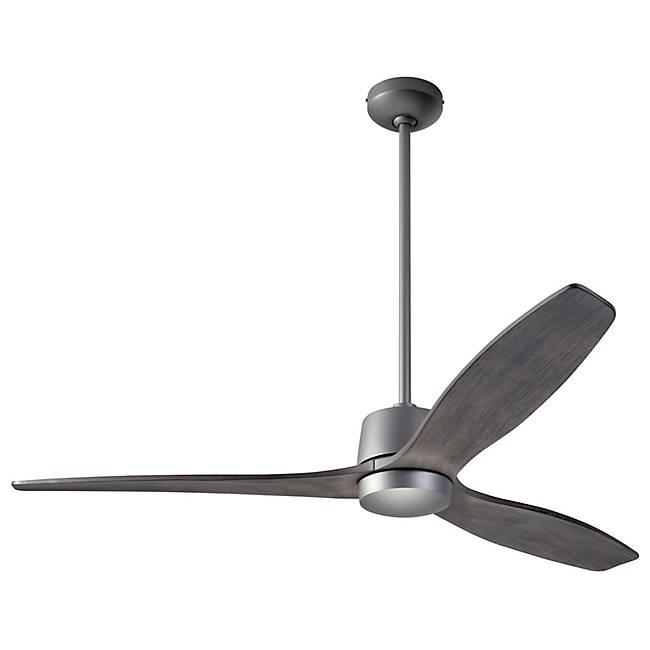

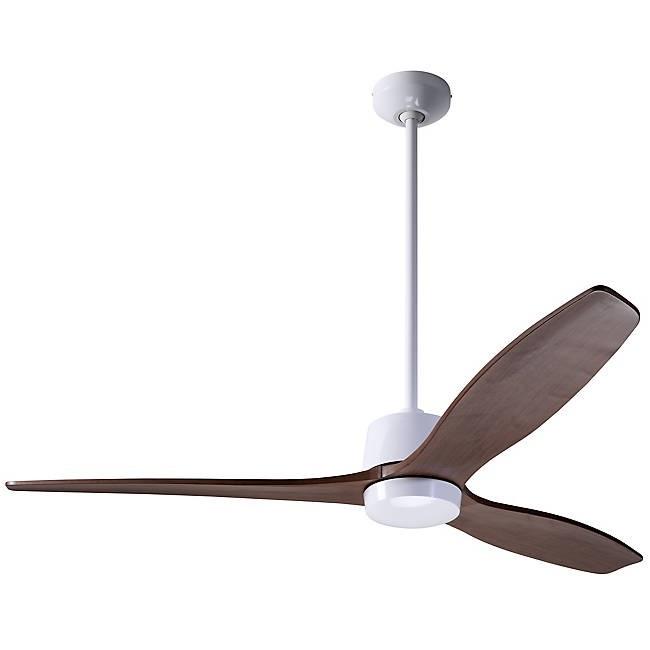

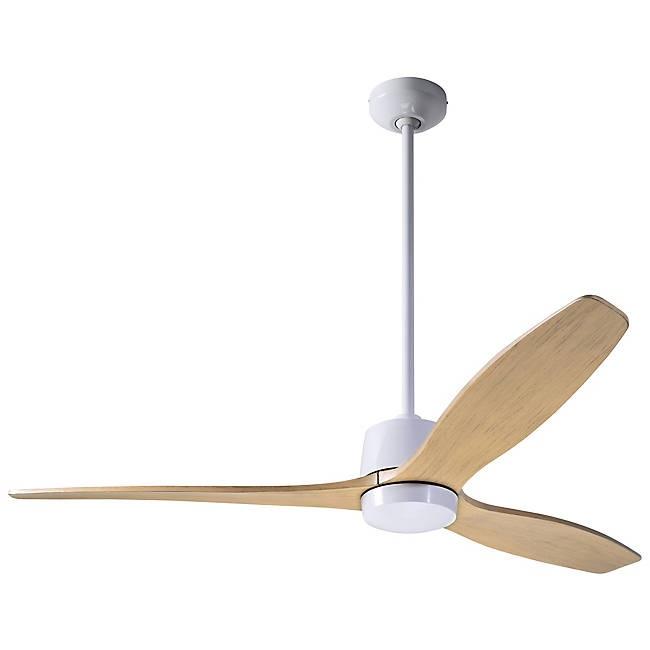

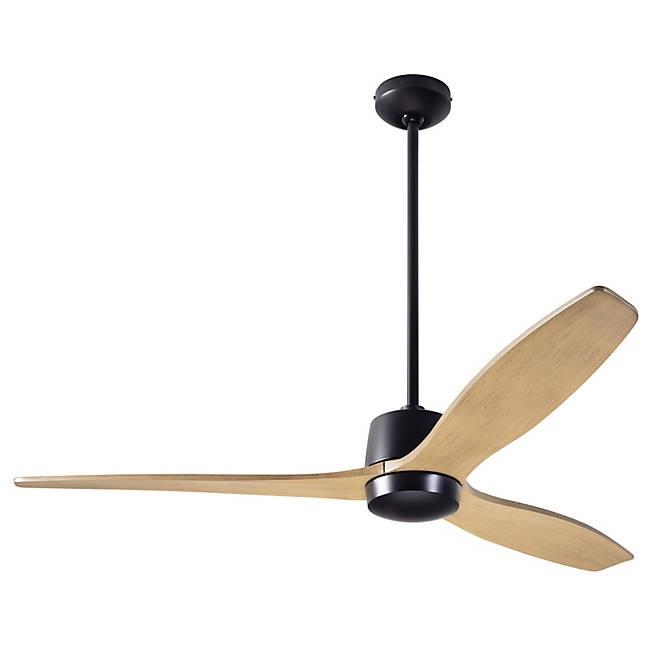

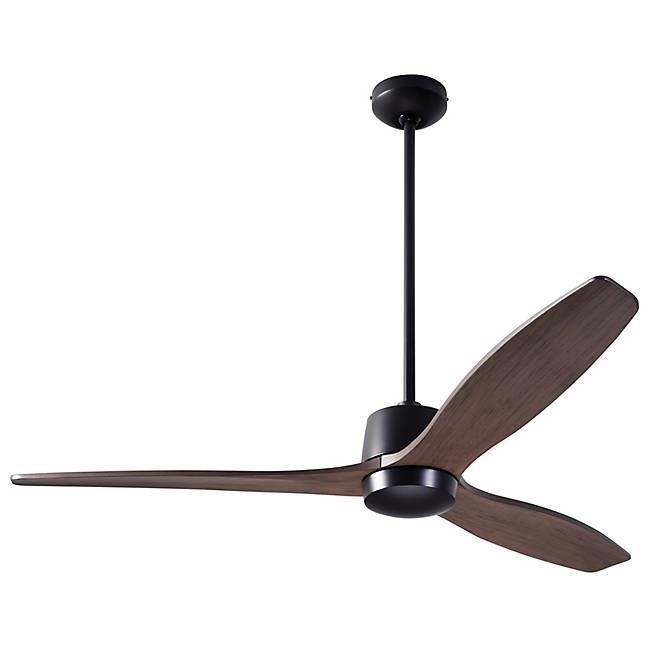

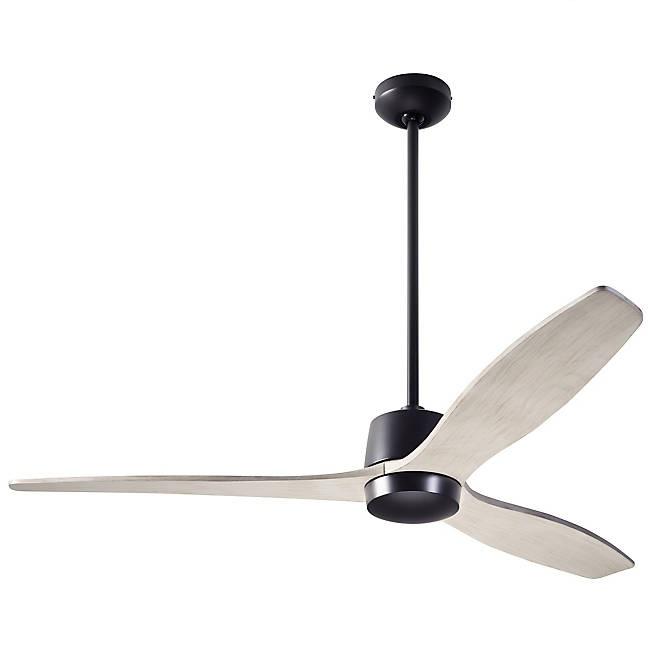

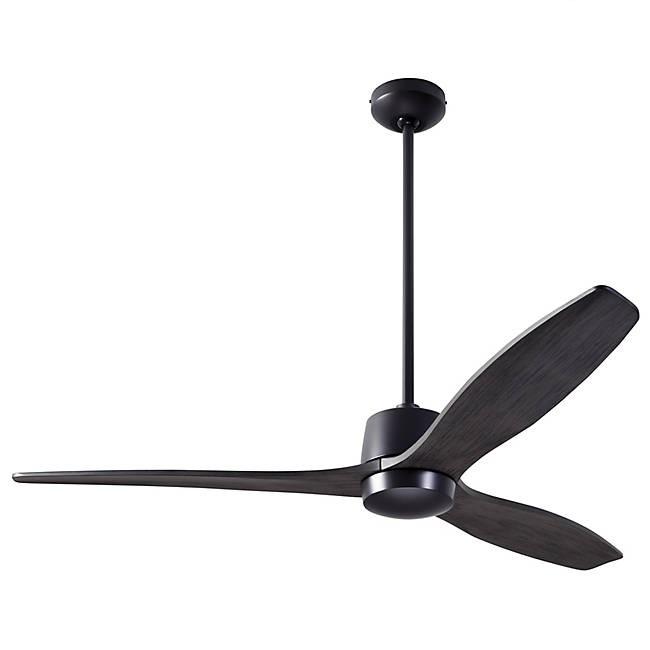

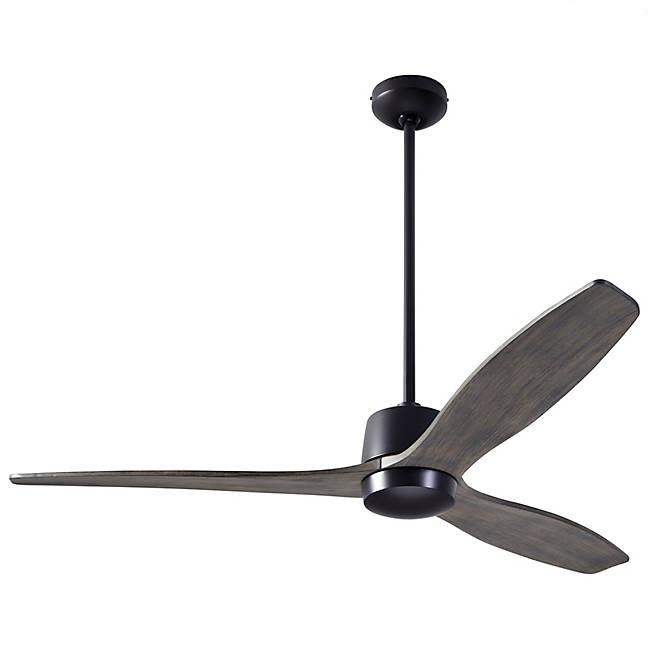

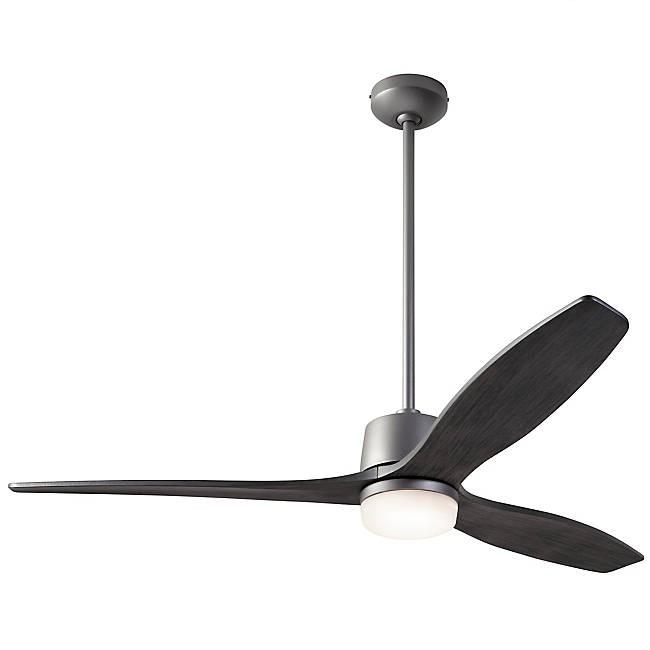

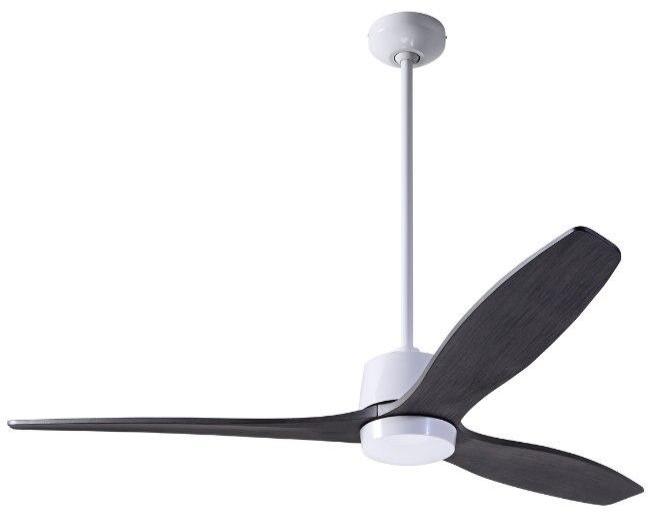

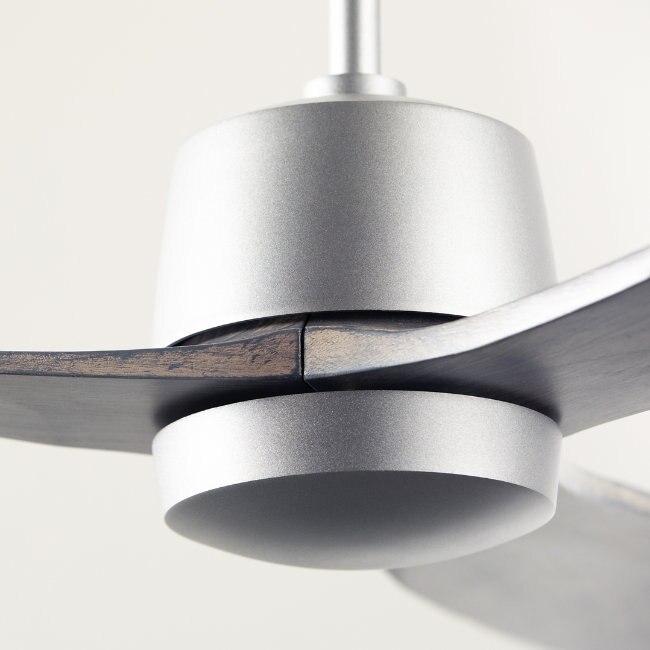

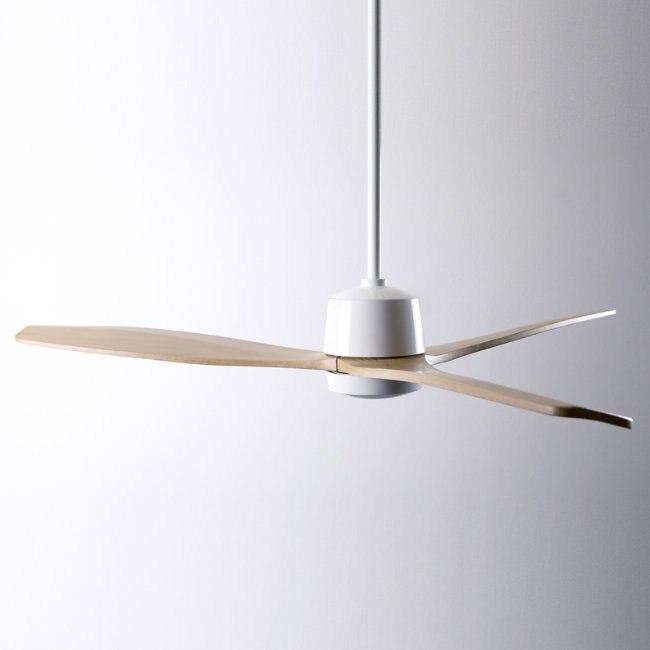

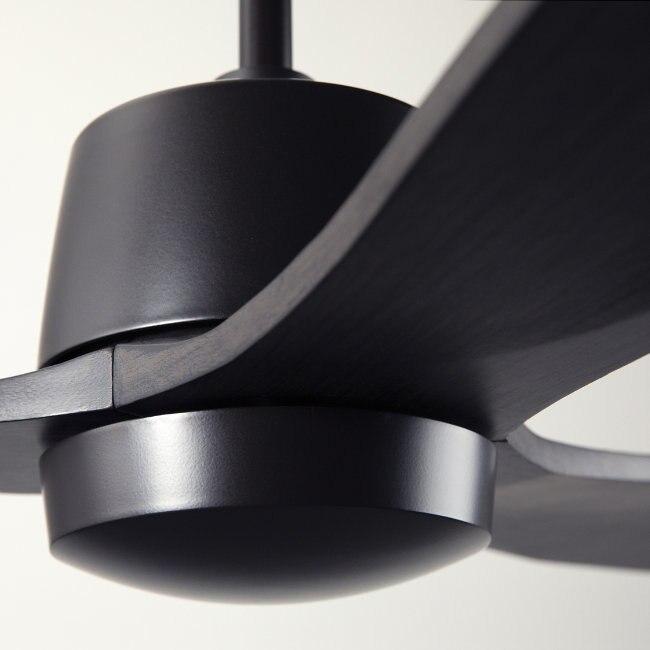

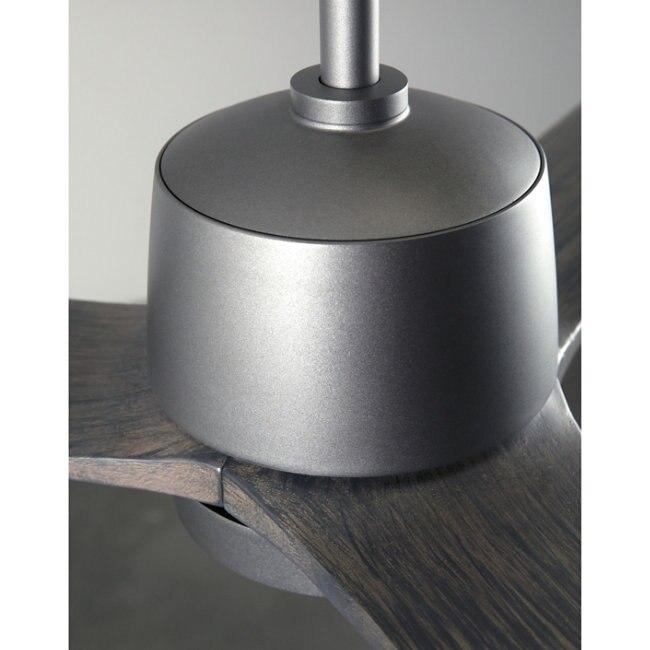

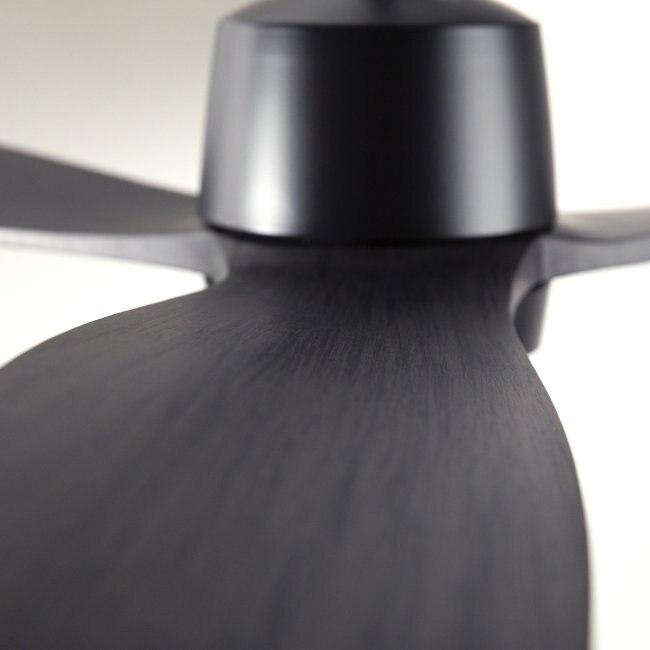

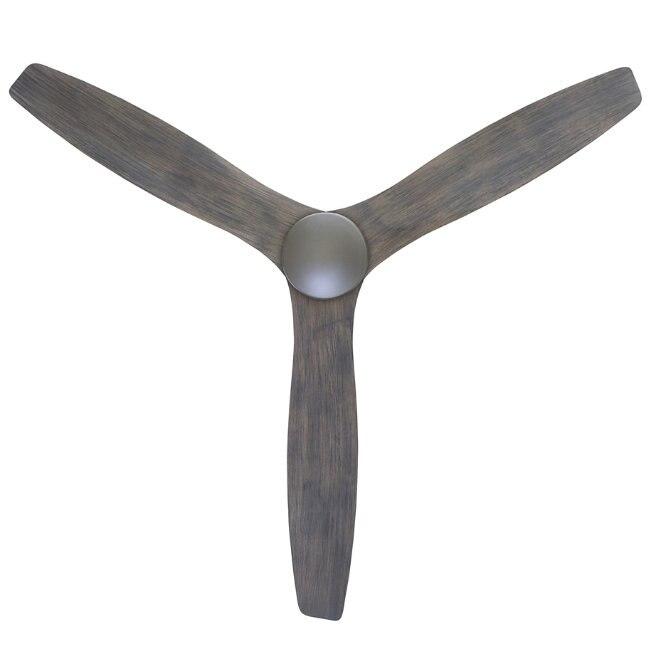

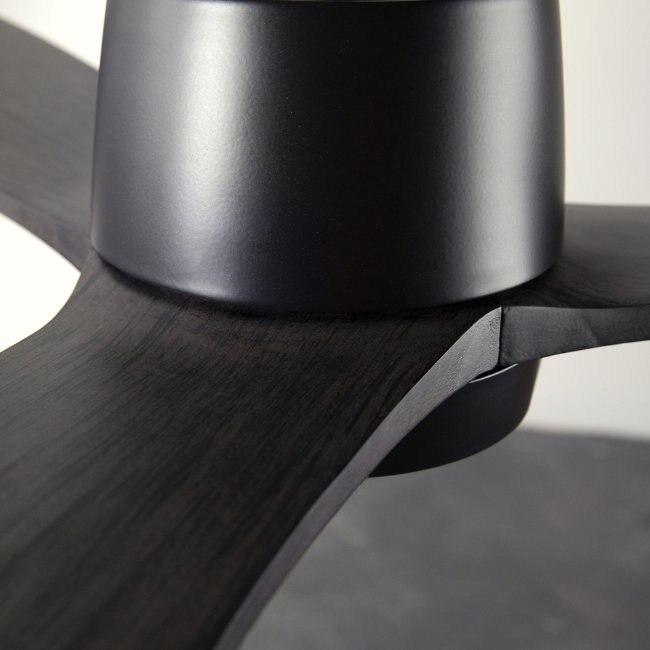

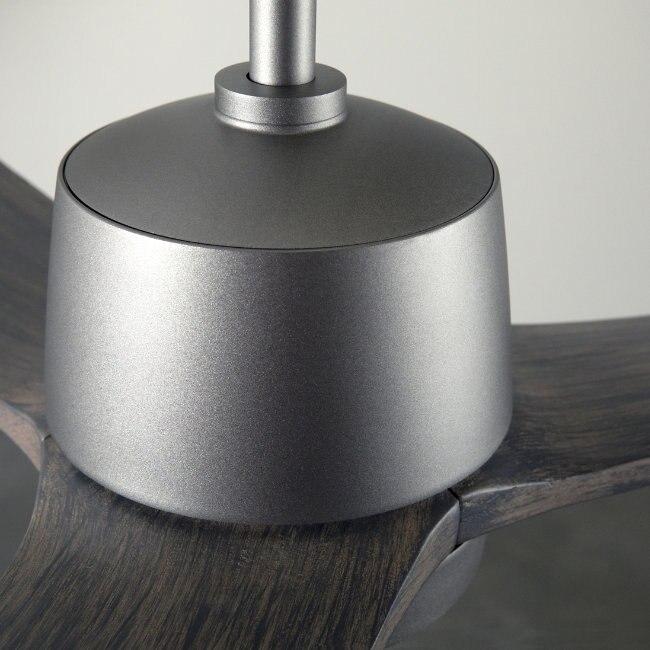

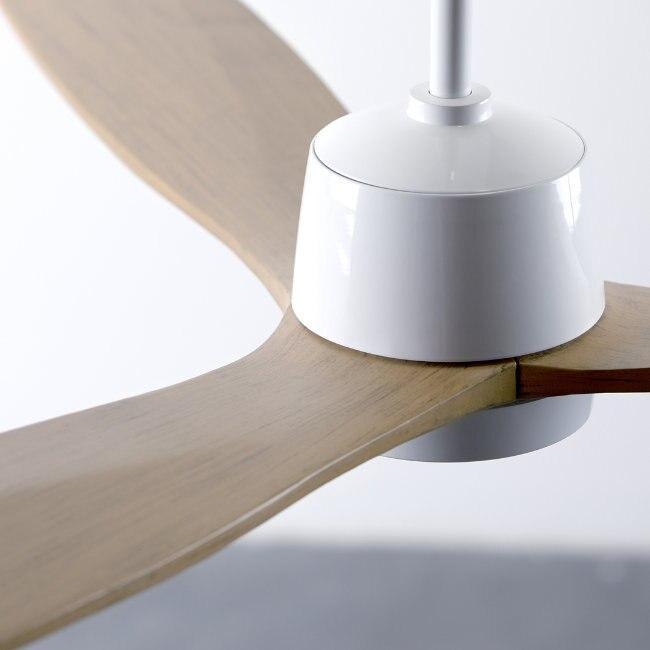

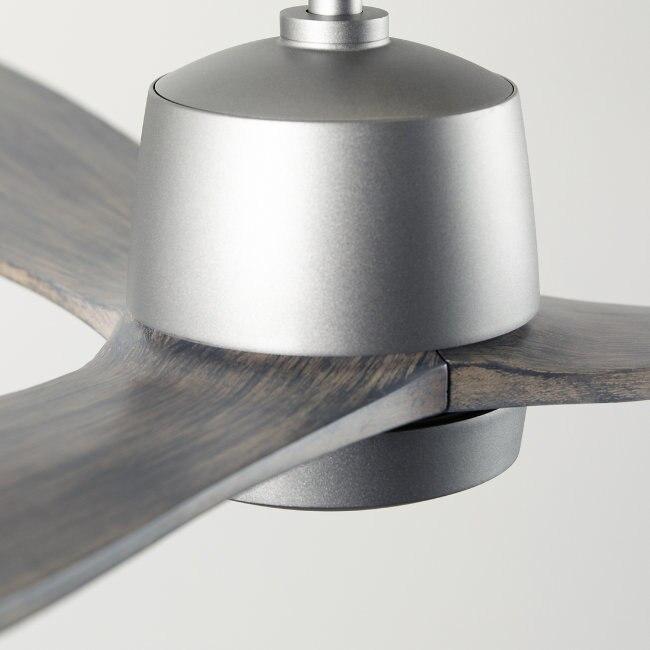

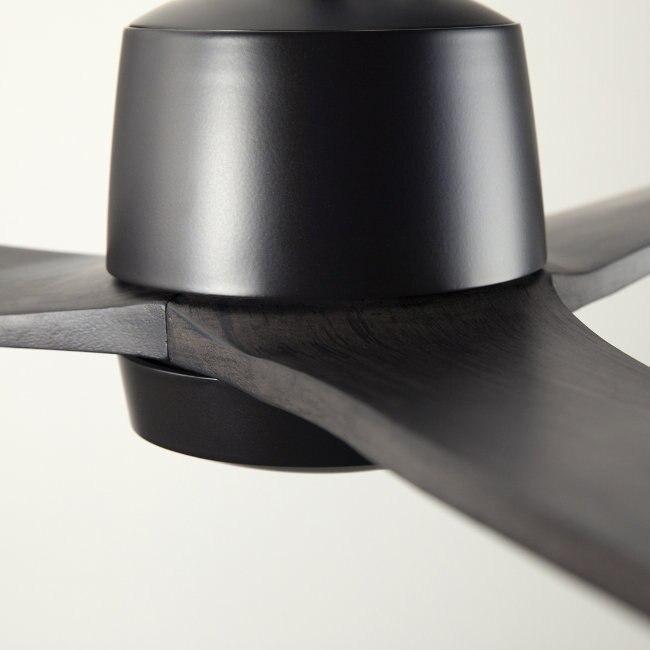

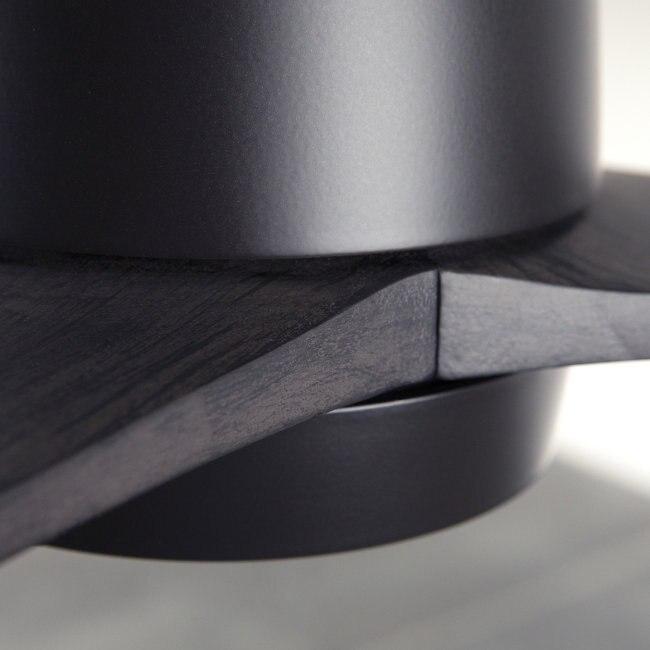

Add comfort and style to the important rooms of your modern home with the Arbor Ceiling Fan from Modern Fan Company. A sleek and smooth piece, it was designed by Dave Ellis after decades of experience in the business. A die-cast aluminum motor and downrod gracefully frame the set of three solid wood blades, allowing them to stand out. The motor runs at six distinct settings and can be reversed depending on the season, ensuring comfort is never more than a button push away. An optional LED light can be attached to the base, bringing further visual comfort and intrigue to the surrounding area with a bright and full layer of light.

In 1997, The Modern Fan Company was founded by Ron Rezek to produce ceiling fans that provide superior air circulation, comfort and energy efficiency for contemporary-minded homeowners and design professionals. Having originated the contemporary ceiling fan genre, The Modern Fan Company remains the only company of its kind, committed exclusively to modern ceiling fan design.

Features
• 6-speed, reversible DC motor
• Die cast aluminum construction
• 54” span, solid wood blades
• Includes 6” and 16” down rods; longer options also available

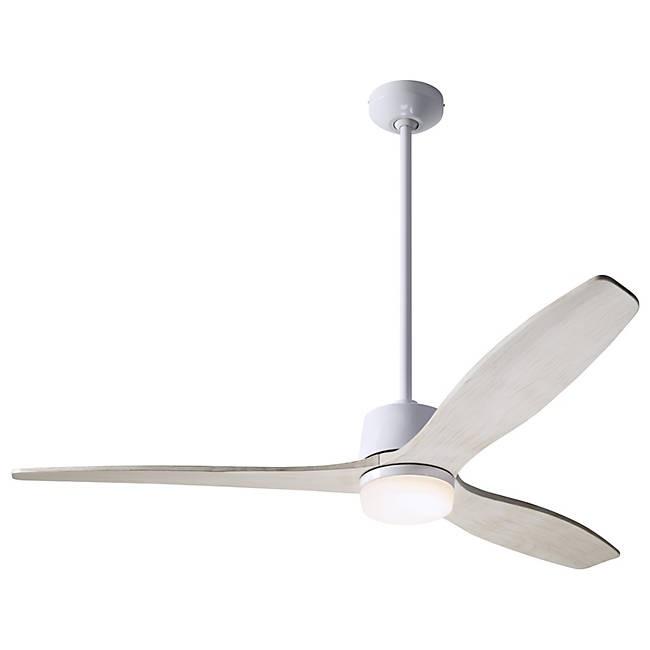

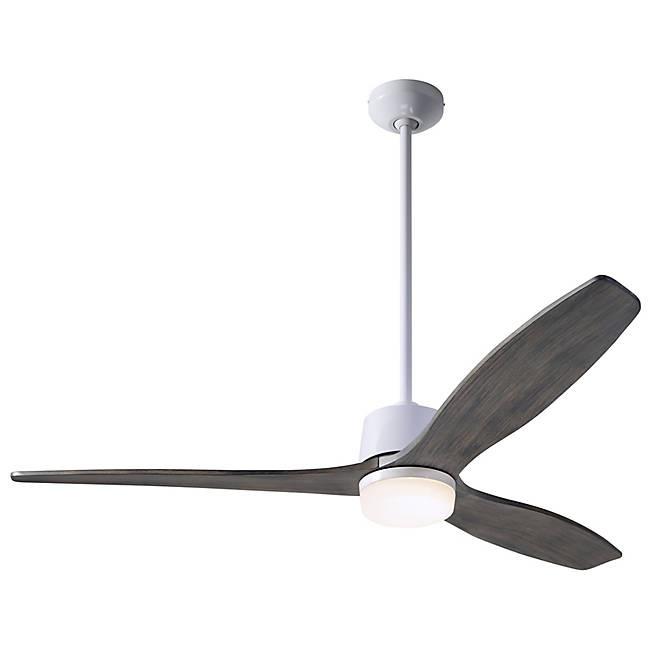

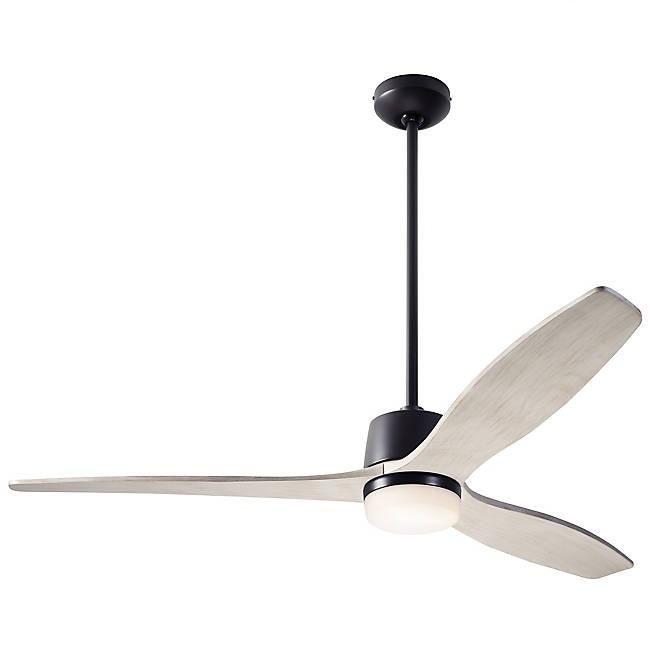

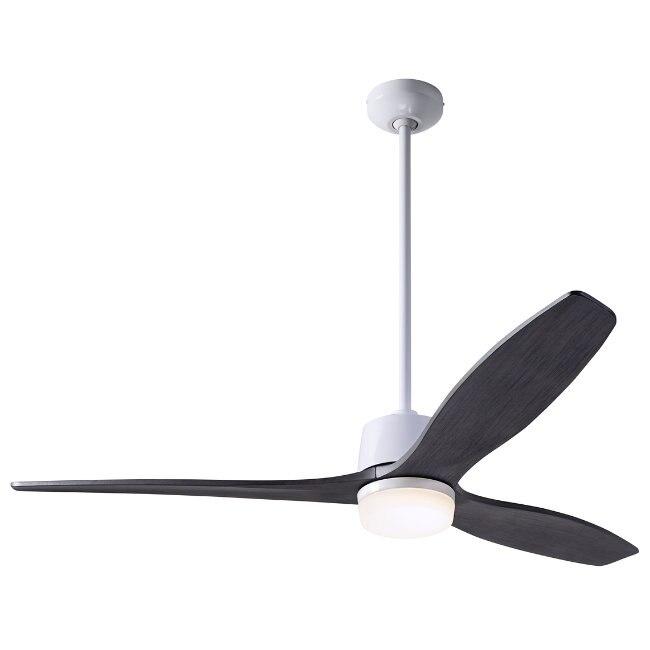

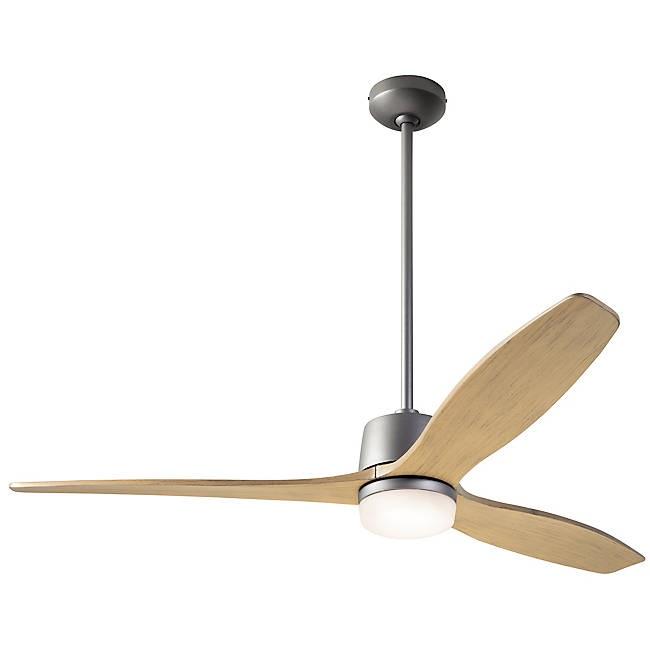

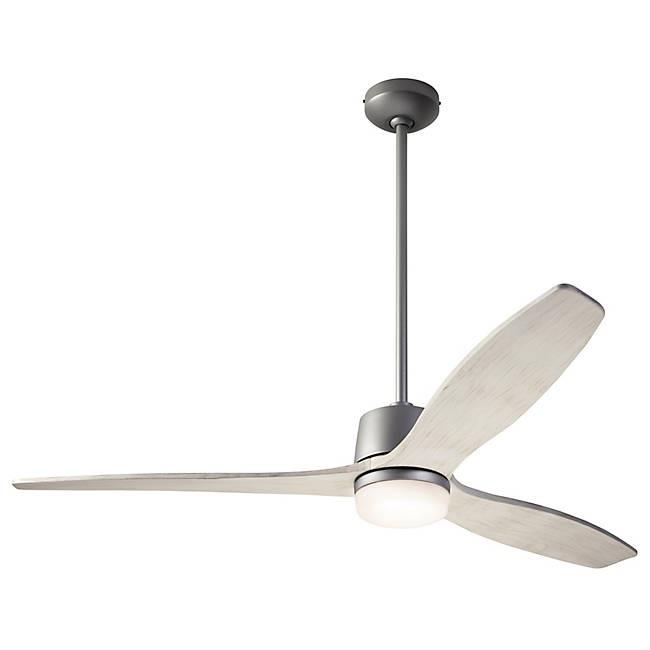

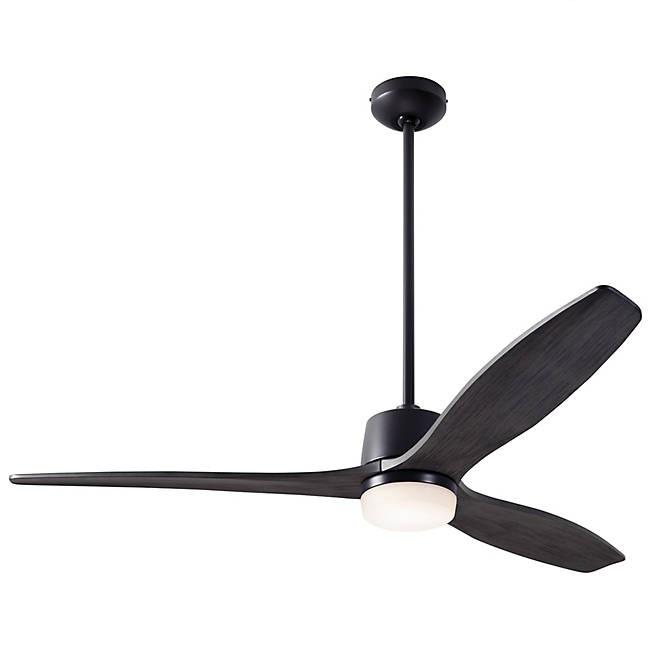

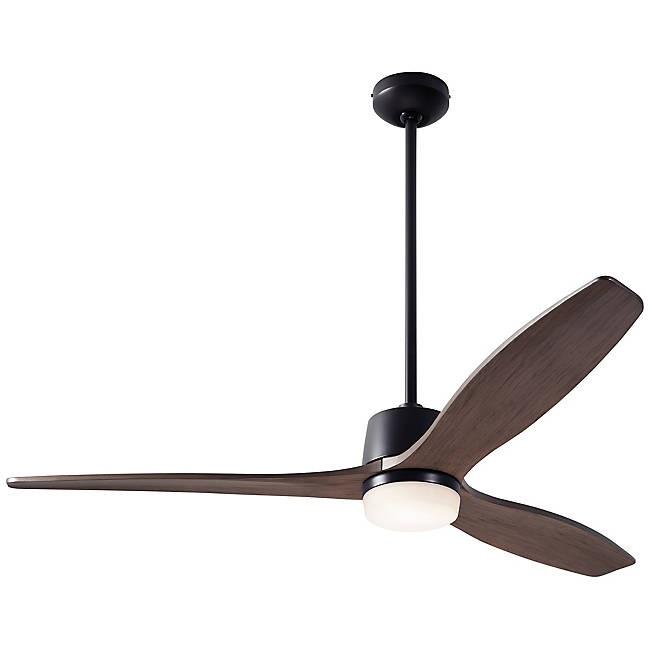

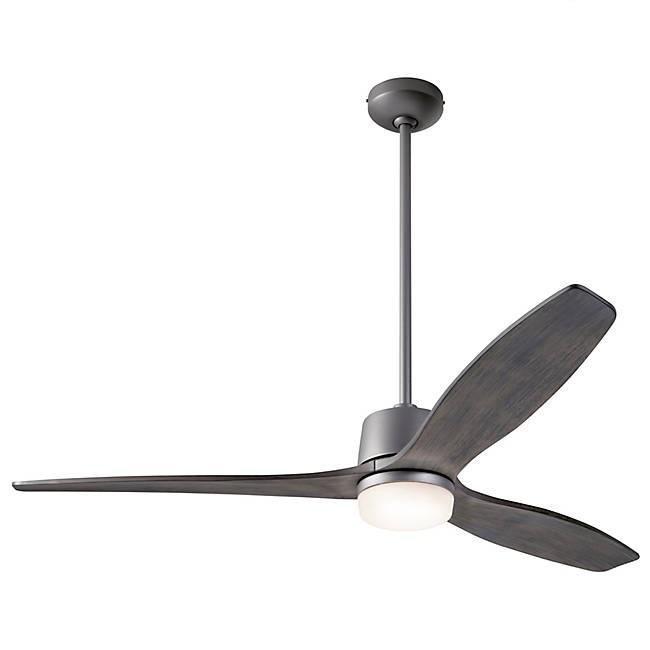

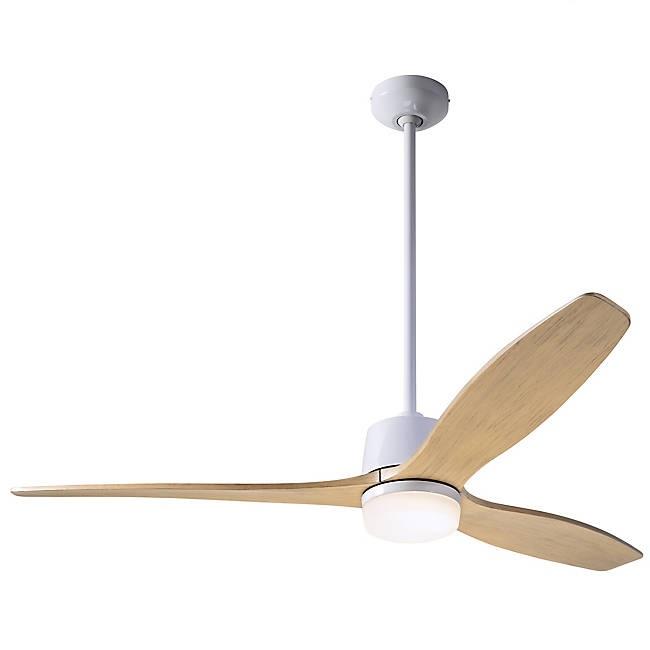

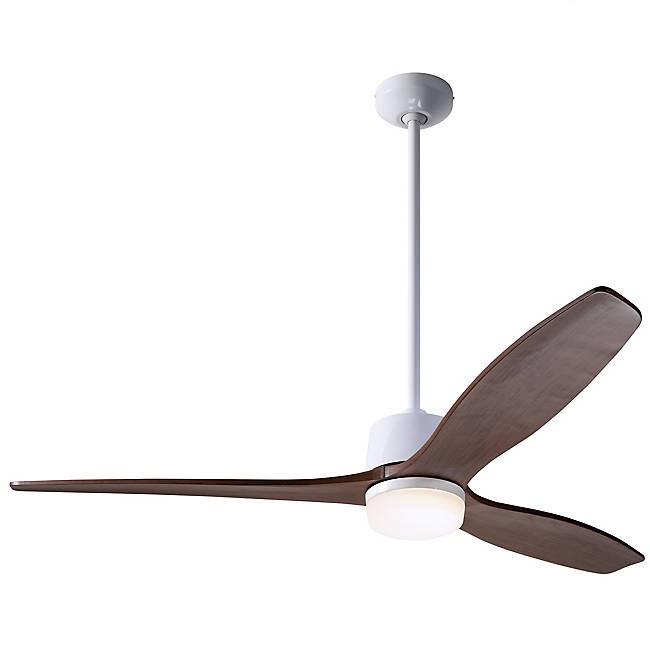

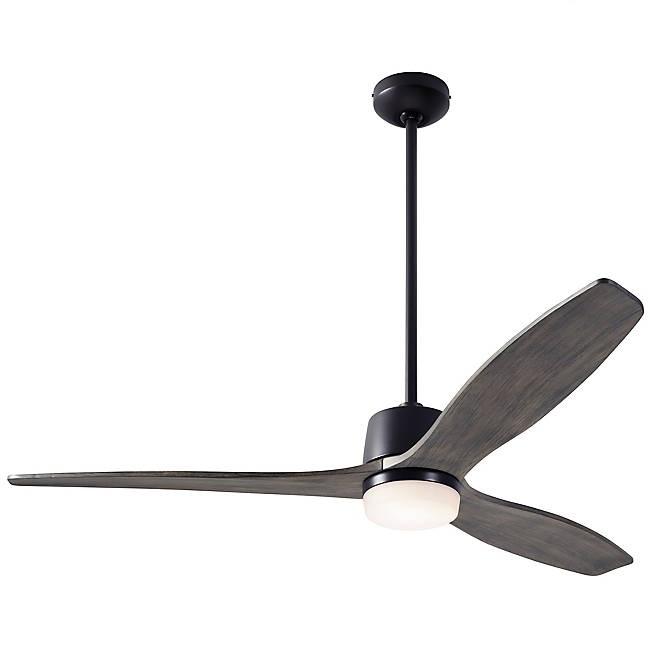

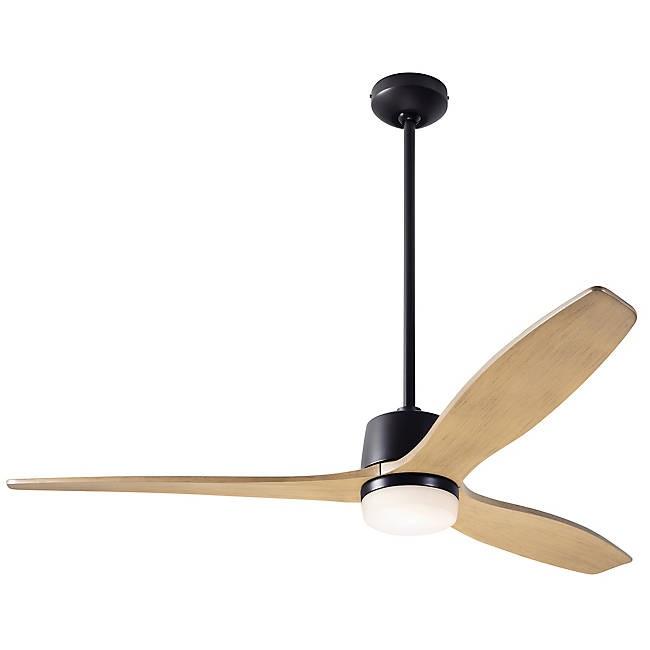

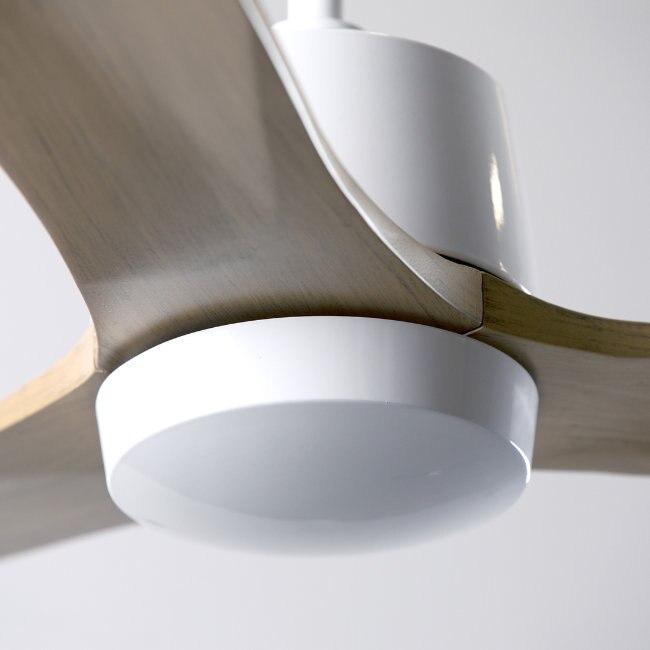

• Optional LED light: 17 Watts, 90 CRI, 3000K, 1530 lumens (dimmable) behind opal glass diffuser; adds 0.75” to length of fan; CA Title 24 (JA8) compliant
• Slope compatible up to 33°; adapter available for slopes up to 45°
• Designed by Dave Ellis
• ETL listed for dry and damp locations
• Weight: 13.0 lbs (5.9 kgs)

High Speed Performance Data:
Based on DOE standardized test method (installed with 6″ down rod).

RPM:  205
CFM (Cubic Feet per Minute):  5,312
Watts (fan only):  30.68
CFM/Watt:  173

Energy Guide Data:
Representing weighted averages of high speed and low speed performance based on DOE/FTC standardized reporting criteria.  Assumes typical use (excluding light).

Average Energy Use:  20 Watts
Average Airflow:  3,486 CFM
Yearly Energy Cost:  $5.00
Average Efficiency:  179 CFM/Watt

More about Performance and Efficiency:

Ceiling fan manufacturers are required by federal law to publish an EnergyGuide label for all models in a standardized format, including watts used, cubic feet of air moved per minute (CFM), a resulting CFM per watt efficiency value and an estimated annual cost to use the product. These values are “weighted averages” of high and low speed performance and are intended to represent typical use. They are based on results from a standardized test gathered in a controlled environment and are furnished to help consumers and specifiers compare products. Because the standardized test method and the EnergyGuide format has changed over the years (with significant impacts on resulting data), be sure to only compare information which has been published based on current test methods and EnergyGuide label format. Many websites continue to provide “high speed” performance data instead of the more current “weighted averages”, making for large discrepancies. Please contact our customer support team with questions about performance data.

It is also important to recognize that in a real world installation, there are a number of variables that can affect air movement patterns and volume, including ceiling height, down rod length, room size/layout, furnishings and airflow direction. It can be challenging to rely on the reported EnergyGuide information alone to determine how the airflow might feel in a given application. Nevertheless, our EnergyGuide data shows that all Modern Fan products perform at the upper range of fans on the market.

Furthermore, while DC motor fans are reaching new levels of efficiency, it’s important to remember that all ceiling fans (AC or DC motors) are inherently efficient and use very little electricity to begin with, especially when used to offset or reduce use of air conditioning.
