Design Roberto Paoli, 2013
Made in Italy by Artemide

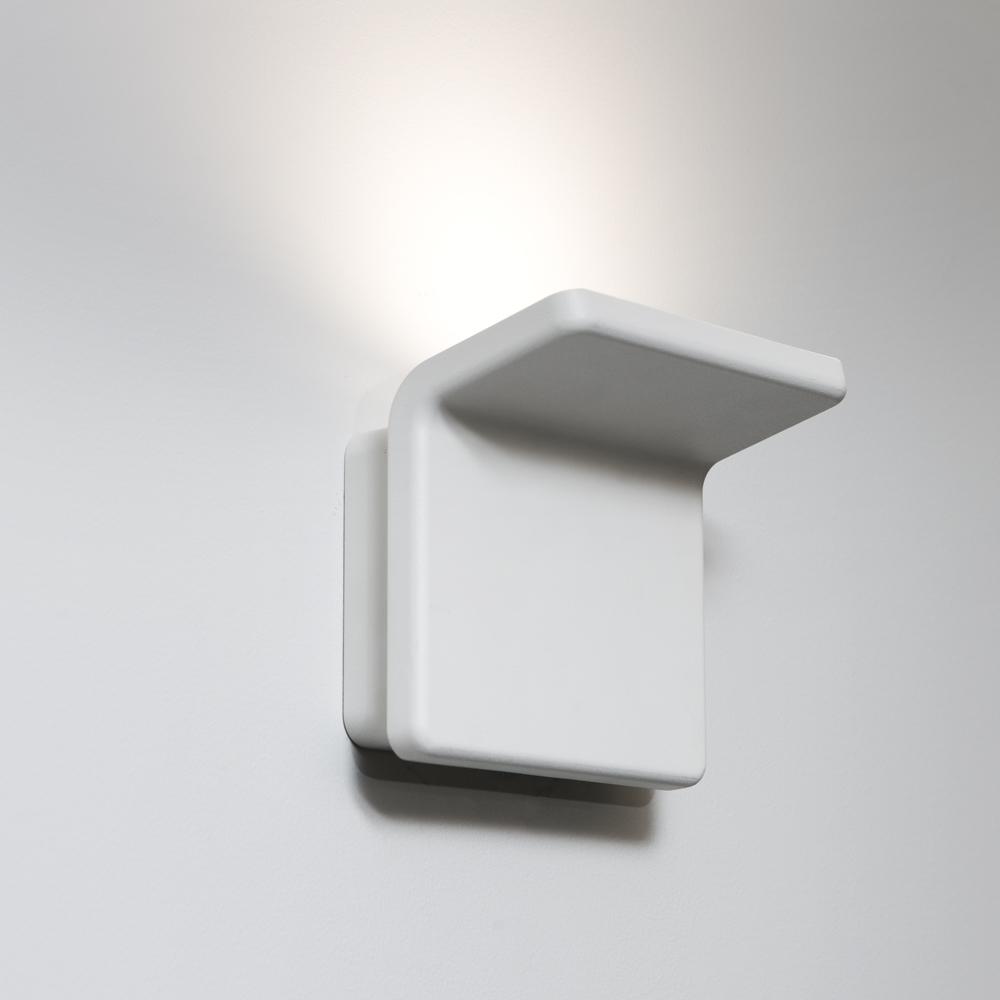

A simple fold of painted aluminum creates harmony between materials, technology and form.
Minimal geometry creates space for indirect light. Polished white die-cast aluminum with injection-molded thermoplastic diffuser.
Materials:
• Structure in die-cast painted aluminum.
• Diffuser in injection-molded thermoplastic.
Specifications:
• Delivered lumens: 1587lm (1161018A), 1650lm (1152118A)
• Light output ratio: 77.44lm/W (1161018A), 58.2lm/W (1152118A)
• Power consumption: 20.6W (1161018A), 28W (1152118A)
• Led type: 18W C.O.B.* (1161018A), 26W C.O.B.* (1152118A)
• CCT (Correlated Color Temperature): 3000K
• CRI (Color Rendering Index): >93
• Life expectancy: 50000Hrs
• Control type: Dimmable 0-10V** (1152118A)
Dimmable 2-Wire** (1161018A)
• Input Voltage: 120-277V
• Driver: UNIV. LIGHT. TECH. - 1 x D700C30UNVTW-L
Dimensions:
cuma 20 wall LED: 7.9" w | 5.8" h | 5.5" d
cuma mini wall LED: 5.9" w| 5.4" h | 3.9" d
