USM Haller Parts {Non-Slotted Tubes}
Questions about the USM Haller Parts {Non-Slotted Tubes}?
Reach out to our experienced customer care professionals, here to provide thoughtful solutions tailored just for you.
Product description
The USM Haller Non-Slotted Tube is an authentic structural component designed for compatible USM Haller furniture. It forms part of the system’s distinctive chromed framework, connecting with USM ball joints and internal connectors to build, repair, or reconfigure modular furniture.

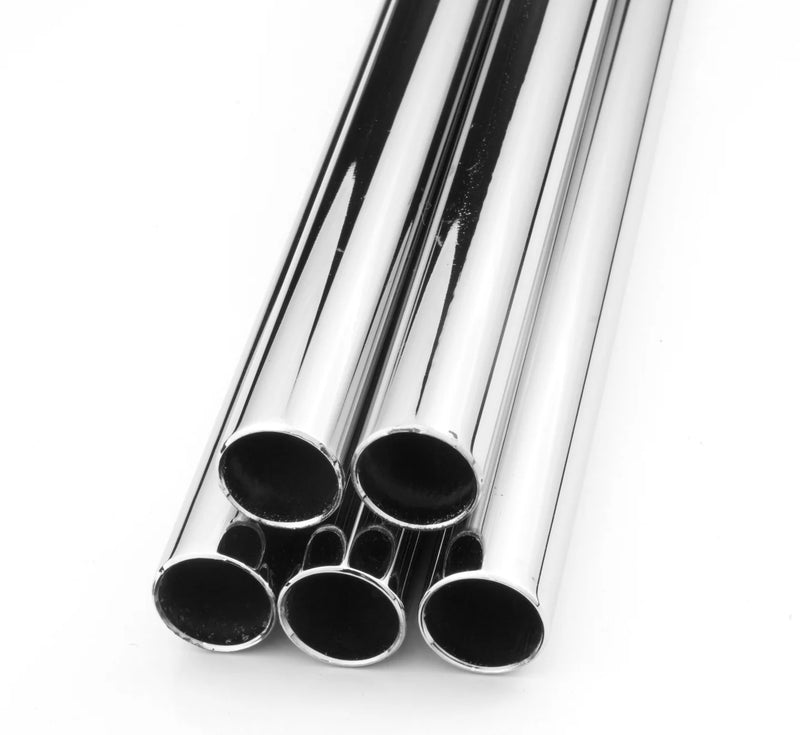

Each tube is manufactured from precision steel tubing with a 19 mm outside diameter and 1.2 mm wall thickness. Both ends are chamfered at 45 degrees on the inside and outside, supporting a precise fit within the USM Haller connector system.
Unlike a slotted joining tube, this standard tube has no access slots at the ends. It is intended for conventional frame construction and should be selected according to the dimensions and connector layout of the existing USM unit.
Designed by Fritz Haller and made in Switzerland, the tube features the polished chrome finish associated with the USM Haller system. USM describes its chrome-plated steel tubes as durable structural elements engineered to integrate with existing and future Haller configurations.
These authentic USM parts ship by UPS from the CA Modern Home Miami warehouse within approximately 1 to 2 weeks. For assistance identifying the correct tube length and related components, contact CA Modern Home at 1.800.605.1859.
Key Details:
- Product Type: Non-slotted structural tube
- Collection: USM Haller
- SKU: 35286
- Designer: Fritz Haller
- Material: Precision steel tubing
- Finish: Chrome-plated
- Outside Diameter: 19 mm / 0.75"
- Wall Thickness: 1.2 mm / 0.047"
- Calculated Inside Diameter: Approximately 16.6 mm / 0.65"
- Tube Ends: Chamfered 45 degrees inside and outside
- Access Slots: None
- Available Lengths: Eight
- Origin: Made in Switzerland
- Quantity: One tube
- Connectors and Ball Joints Included: No
- Shipping Method: UPS from the Miami warehouse
- Estimated Shipping Time: 1 to 2 weeks

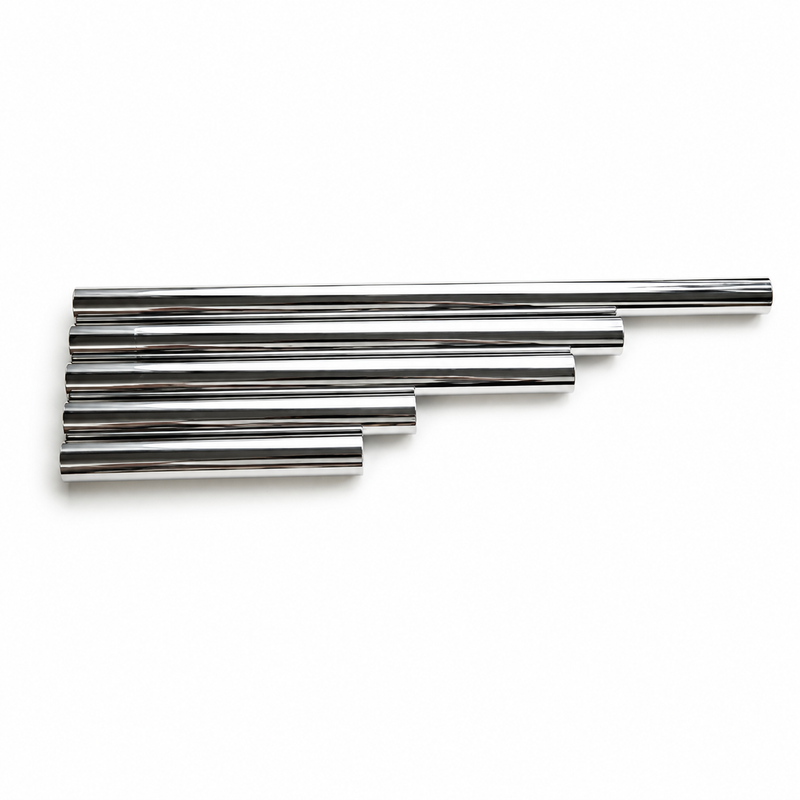

Available Lengths:
- 750 mm: Approximately 29.53"
- 500 mm: Approximately 19.69"
- 395 mm: Approximately 15.55"
- 350 mm: Approximately 13.78"
- 250 mm: Approximately 9.84"
- 175 mm: Approximately 6.89"
- 150 mm: Approximately 5.91"
- 100 mm: Approximately 3.94"
Compatibility Notice:
The selected tube must match the existing USM furniture’s nominal system dimension, frame layout, and connector type. Non-slotted tubes should not be substituted for slotted joining tubes used to connect separately assembled furniture sections.
USM states that Haller dimensions are nominal, so the listed metric measurement may represent the system spacing rather than the tube’s exact physical end-to-end measurement. Confirm the required component with a qualified USM technician before ordering.
Item Size and Weight in Pounds:
750 mm Tube
Approximate Size: 29.53" L x 0.75" diameter
Estimated Weight: 0.87 lb
500 mm Tube
Approximate Size: 19.69" L x 0.75" diameter
Estimated Weight: 0.58 lb
395 mm Tube
Approximate Size: 15.55" L x 0.75" diameter
Estimated Weight: 0.46 lb
350 mm Tube
Approximate Size: 13.78" L x 0.75" diameter
Estimated Weight: 0.41 lb
250 mm Tube
Approximate Size: 9.84" L x 0.75" diameter
Estimated Weight: 0.29 lb
175 mm Tube
Approximate Size: 6.89" L x 0.75" diameter
Estimated Weight: 0.20 lb
150 mm Tube
Approximate Size: 5.91" L x 0.75" diameter
Estimated Weight: 0.17 lb
100 mm Tube
Approximate Size: 3.94" L x 0.75" diameter
Estimated Weight: 0.12 lb
