IC/Brisa DC | 56″
Questions about the IC/Brisa DC | 56″?
Reach out to our experienced customer care professionals, here to provide thoughtful solutions tailored just for you.
Product description
***** Ships in 5-7 days *****

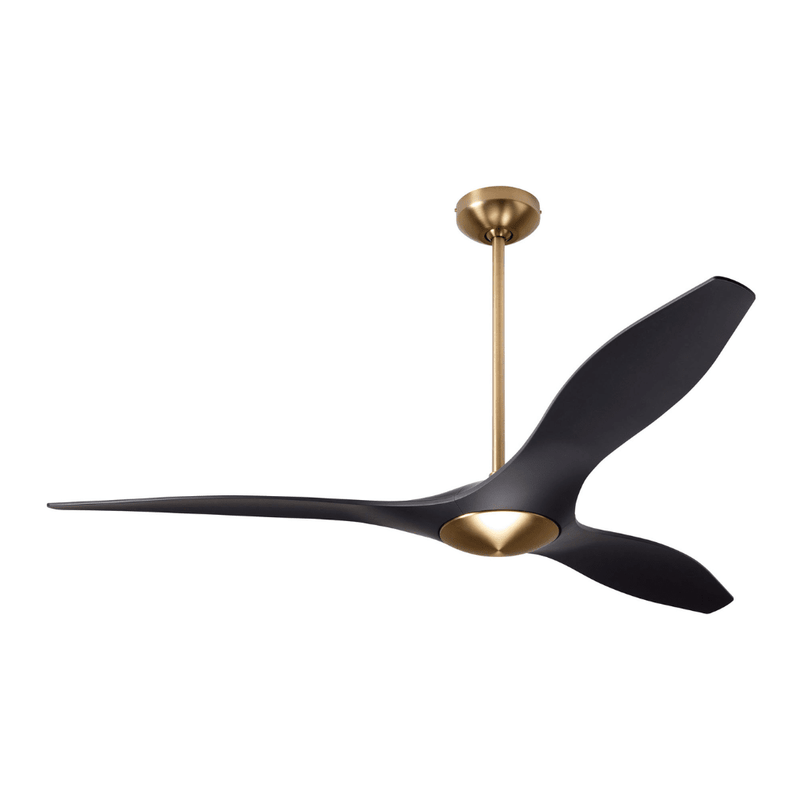

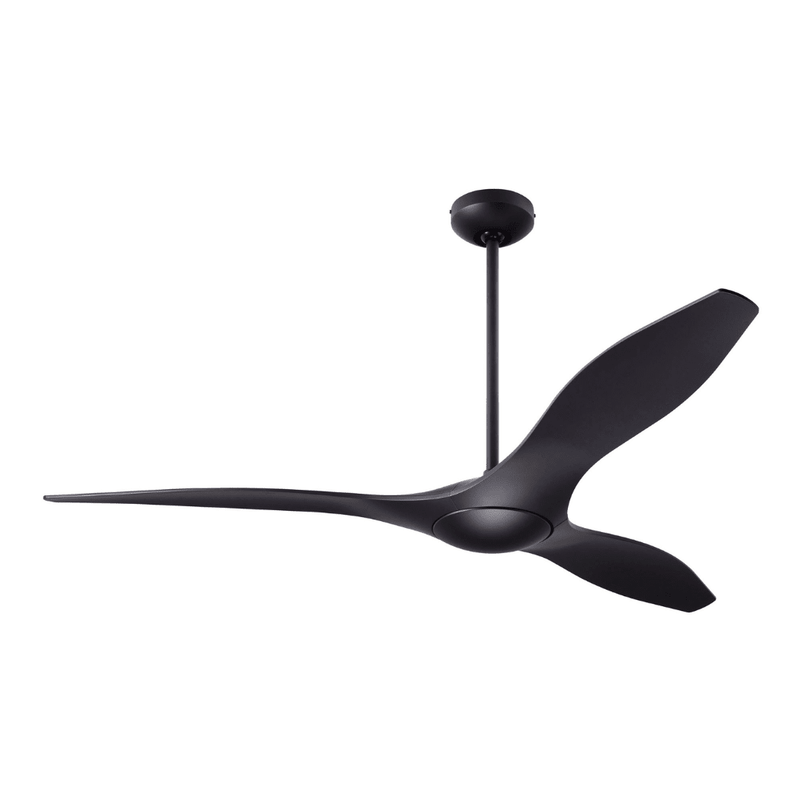

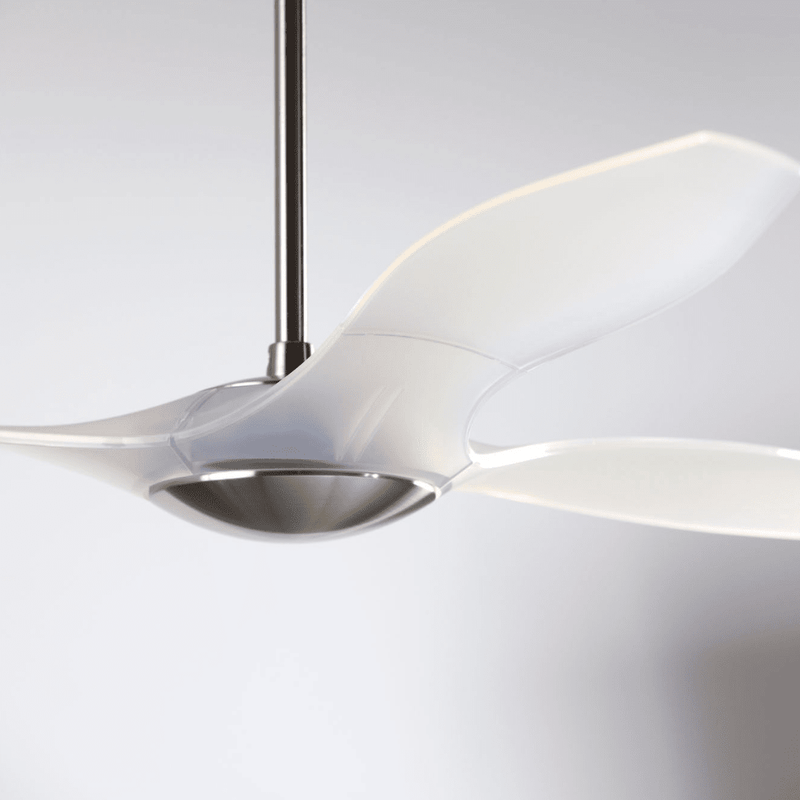

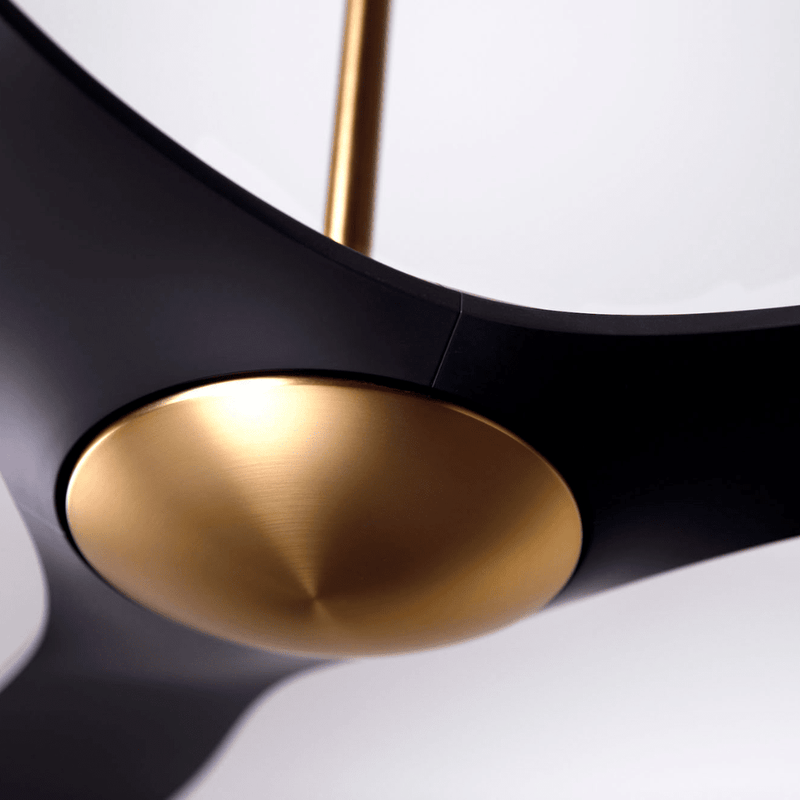

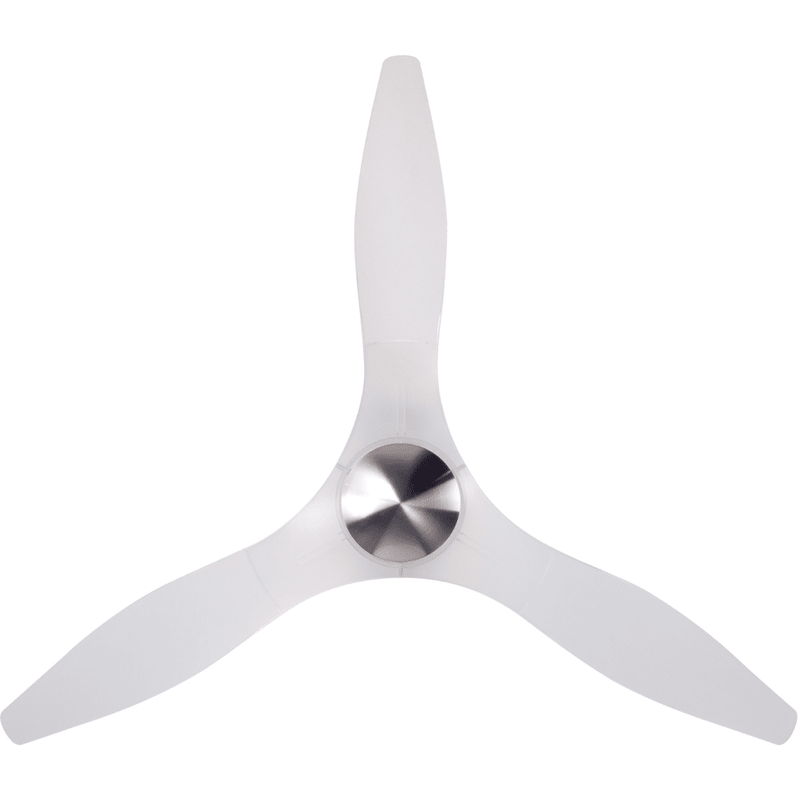

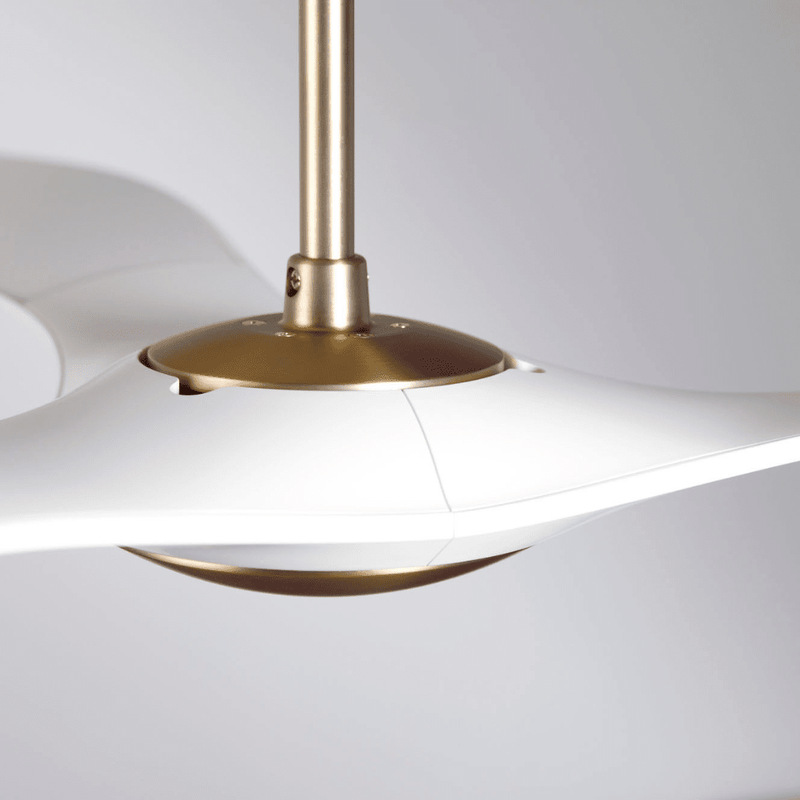

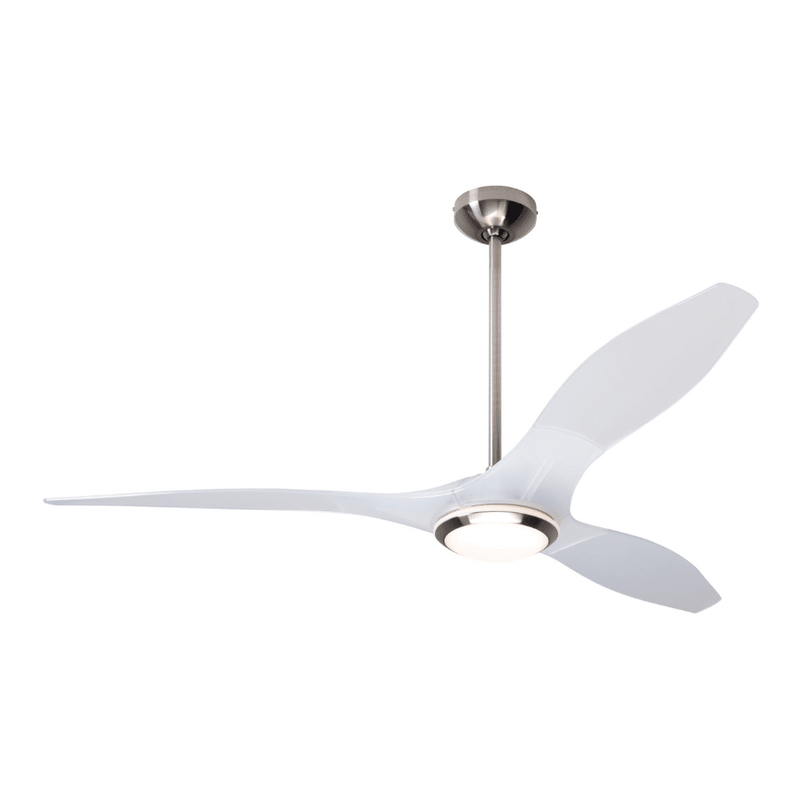

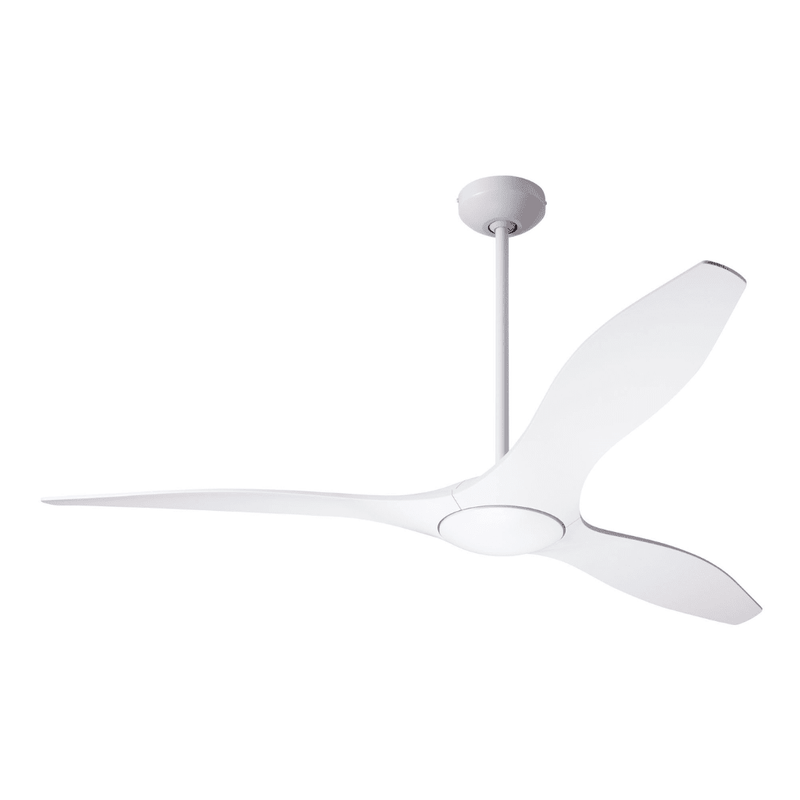

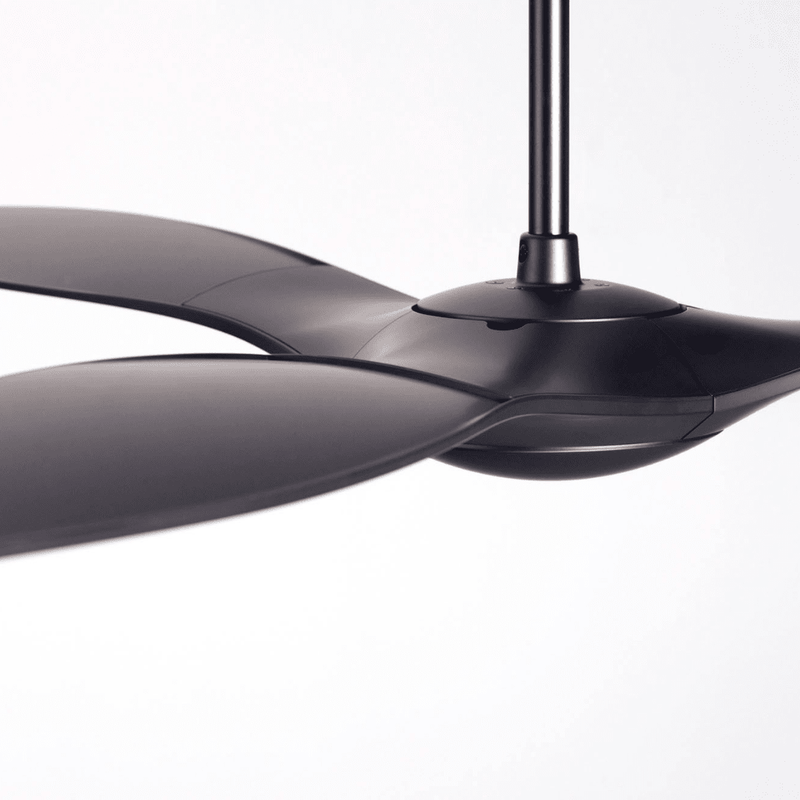

The IC/Brisa DC Ceiling Fan from Modern Fan Company adds a pleasing sculptural presence to inside spaces. An articulate modern design descending from a long downrod places a small, though strong DC motor in a central disc hub, accompanied by a damp-rated LED lamp set into the housing’s base. Three injection-molded ABS blades extend outward from the central hub, accompanied by the gentle glow of the lamping and embellishing the fan’s otherwise simple design with their inspired curvature.
Features
- 6-speed, reversible DC motor
- Die cast aluminum and injection-molded ABS construction
- 56” span, injection-molded ABS blades (matte white, matte black or translucent)
- Includes 6” and 18” down rods; longer options also available

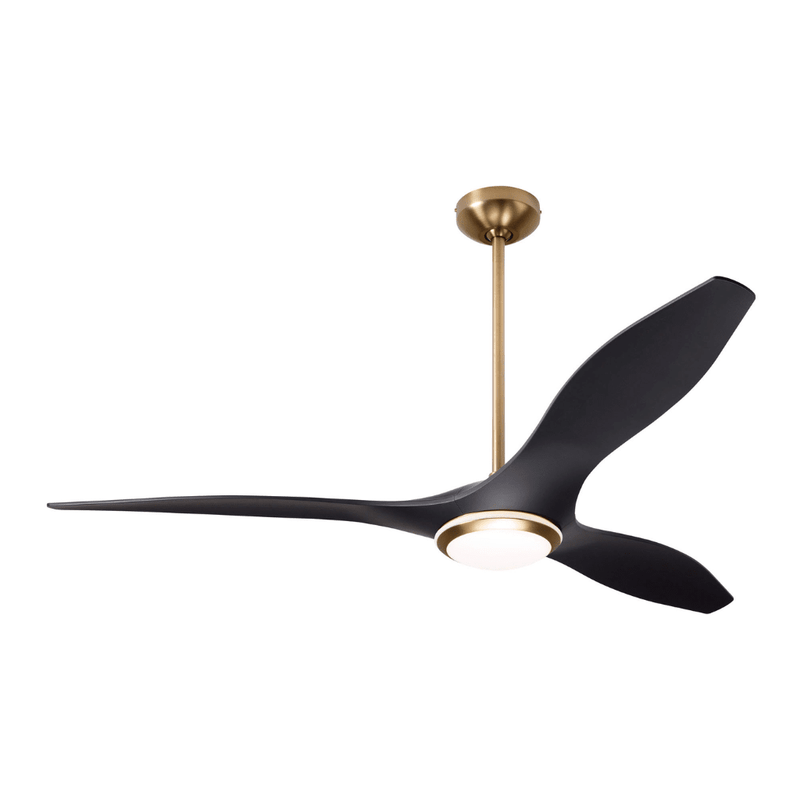

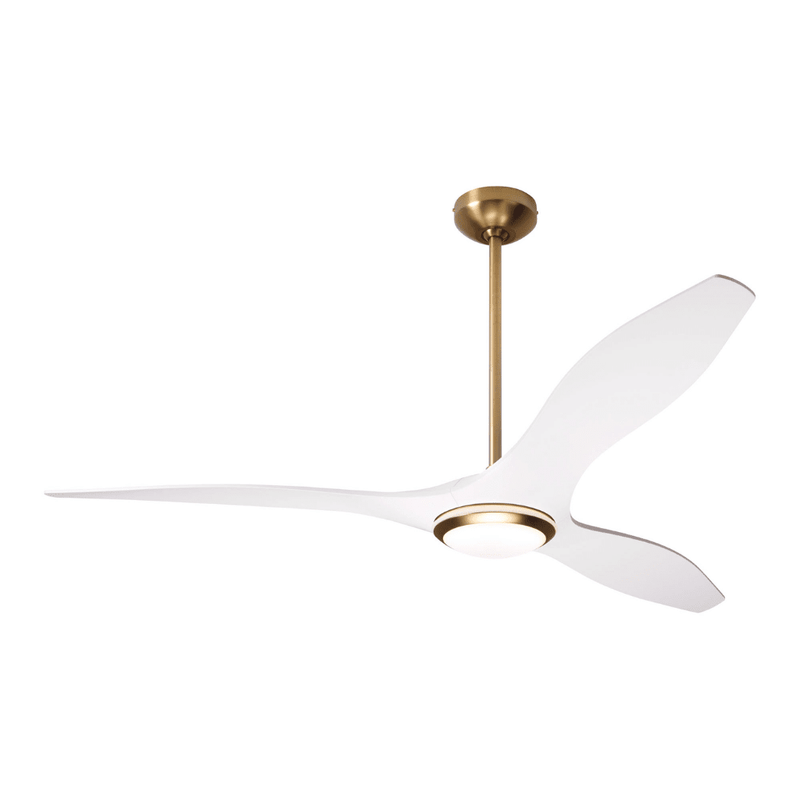

- Optional LED light: 17W, 90 CRI, 3000K, 1530 lumens (dimmable) behind an opal glass diffuser; CA Title 24 (JA8) compliant
- Slope compatible up to 20°; adapter available for slopes up to 45°
- Designed by Guto Indio da Costa
- ETL listed for dry and damp locations
- Weight: 12.0 lbs (5.44 kgs)
High Speed Performance Data:
Based on DOE standardized test method (installed with 6″ down rod).
RPM: 185
CFM (Cubic Feet per Minute): 5,584
Watts (fan only): 29.89
CFM/Watt: 187

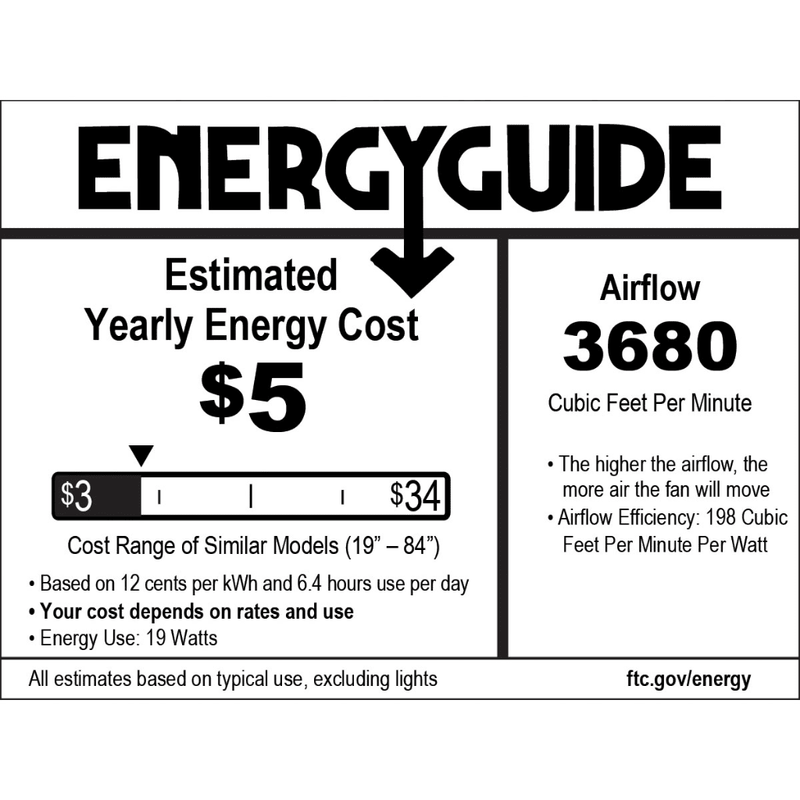

Energy Guide Data:
Representing weighted averages of high speed and low speed performance based on DOE/FTC standardized reporting criteria. Assumes typical use (excluding light).
Average Energy Use: 19 Watts
Average Airflow: 3,680 CFM
Yearly Energy Cost: $5.00
Average Efficiency: 198 CFM/Watt

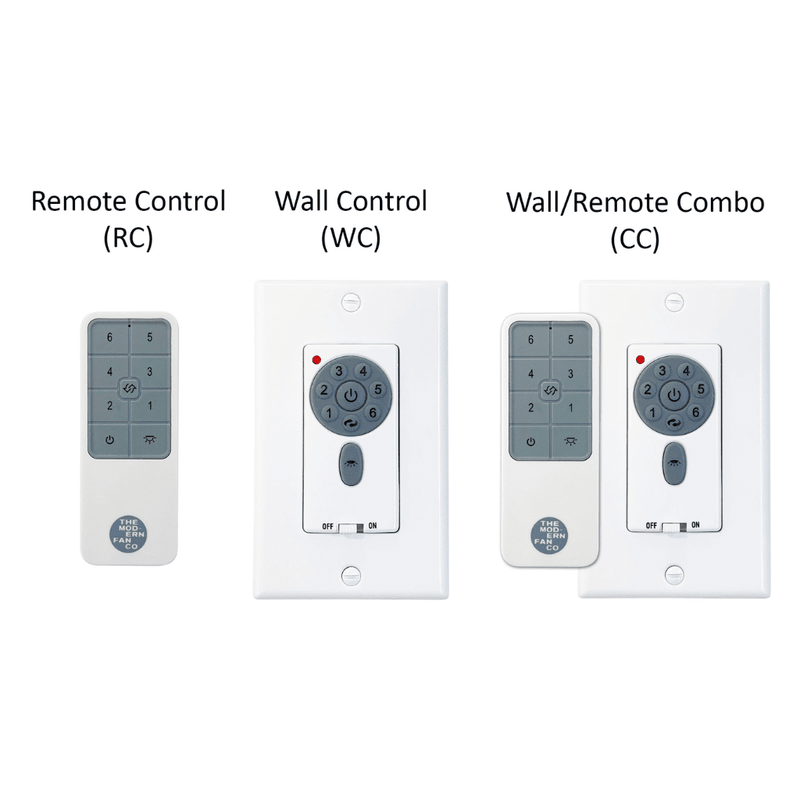

Control Options for DC Motor Fans
Wall Control (WC)
For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), battery and RF canopy receiver.
Remote Control (RC)
For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes handset, wall mount holder, battery and and RF canopy receiver. For use with on/off toggle switch providing power supply to fan.
Wall/Remote Combo (CC)
A combination control set for radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), handset, batteries and RF canopy receiver.

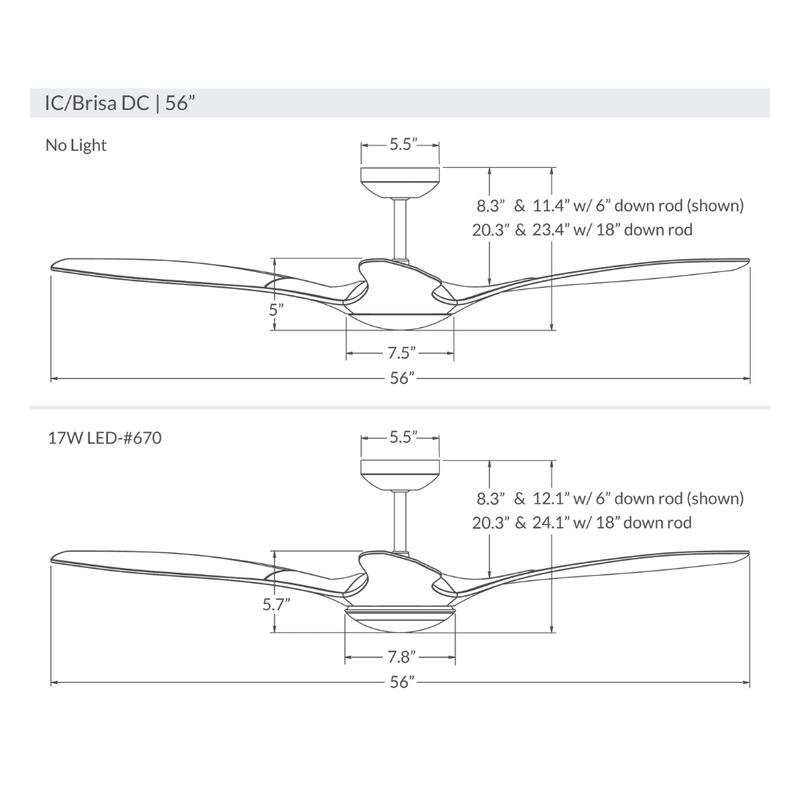

Dimensions:
Shipping information
Quick Ship 6-8 Weeks
Fast Track 8-10 Weeks
Special Order 14-16 Weeks
Shipping details may vary by brand, product size, and availability. Large furniture items may ship by freight, while smaller items may ship by standard delivery. Some products may also have vendor-specific lead times or special delivery requirements.
For the most accurate shipping details, please review the product information or contact us before placing your order.
Returns & Warranty
Please visit Return Policy
